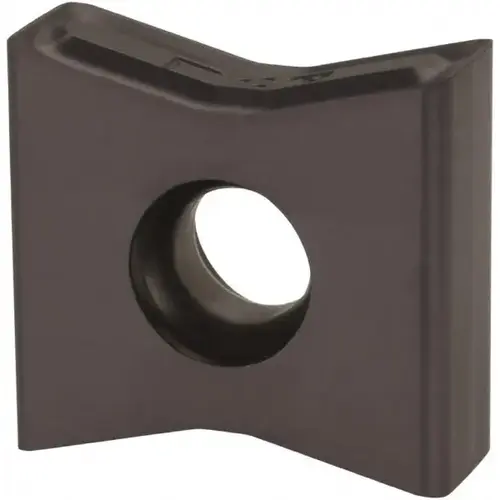

Milling Insert: LNKX 1506PN-N PL, IC908, Solid Carbide TiAlN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Iscar 5603355 Milling Insert: LNKX 1506PN-N PL, IC908, Solid Carbide TiAlN

Item #: 5603355 by Iscar

See reviewsSee reviews
See reviews summary
In Stock

$44.28

/each
SAVE UP TO 4.43
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 84 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

T-Land

Material Application

Steel

ANSI Code

LNKX 1506PN-N PL IC908

Number of Cutting Edges

4

Standards

ANSI

Insert Material

Solid Carbide

Series

TANGMILL

Coating Process

PVD

Coating/Finish

TiAlN

Corner Radius (Decimal Inch)

0.0315

Length (Decimal Inch - 4 Decimals)

0.5906

Manufacturers Catalog Number

LNKX 1506PN-N PL IC908

Material Grade

Submicron

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

Thickness (Decimal Inch - 4 Decimals)

0.5460

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.2360

Coating Classification

PVD

Insert Holding Method

Screw

Maximum Depth of Cut (Decimal Inch)

0.2760

Multi-use Tool

Yes

Rake

Negative

Insert Hand

Neutral

Inscribed Circle (Decimal Inch)

0.2360

Corner Radius (Inch)

1/32

Insert Shape

Butterfly

Chip Breaker

PL

Secondary Workpiece Material Code

H

Insert Style

LNKX

Insert Size Code

1506

Relief Angle

0

Included Angle Degree

90

Cutting Edge Effective Length (Decimal Inch)

0.5906

Maximum Depth of Cut (mm)

7.00

Manufacturer Grade

IC908

Inscribed Circle Range (Decimal Inch)

0.0000 to 0.2500

Single or Double Sided Insert

Double

Cutter Series Compatibility

FDN

Length Range (Decimal Inch)

0.5000 to 0.6000

Thickness Range (Decimal Inch)

0.5000+

Corner Radius (mm)

0.80

Iso Code

LNKX 1506PN-N PL

Product Overview
Milling Insert: LNKX 1506PN-N PL, IC908, Solid Carbide Coated, 0.2362" Thick, 0.5472" Wide
