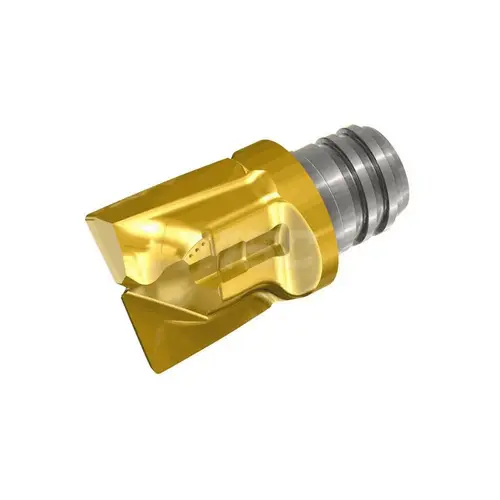

T-Slot Replaceable Milling Tip: MMHC.625C63R0162T10 90 IC908, Carbide - pack of 2

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Iscar 5604117-XCP2 T-Slot Replaceable Milling Tip: MMHC.625C63R0162T10 90 IC908, Carbide - pack of 2

Item #: 5604117-XCP2 by Iscar

See reviewsSee reviews
See reviews summary

The item is currently out of stock and it may or may not be restocked
OUT OF STOCK

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Helix Angle

10

Number of Flutes

2

Standards

ANSI

Tool Material

Carbide

Chipbreaker

None

Series

MM HC

Coating Process

PVD

Coating/Finish

TiAlN

Coolant Through

No

Corner Radius (Decimal Inch)

0.0160

Length Of Cut (Decimal Inch - 4 Decimals)

0.6000in

Manufacturers Catalog Number

5604117

Material Grade

Sub Micrograin

Overall Length (Inch)

3/4in

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

UNSPSC Code

23291601

Vendor Drop Ship

Y

Cutting Width (Decimal Inch)

0.6250in

Lead Angle

90

Maximum Depth of Cut (Decimal Inch)

0.6000

Insert Hand

Right Hand

Chamfer Angle

0degree

Included Angle Degree

90

Milling Tip Style

MM HC

Milling Tip Type

Slotting Drill

Manufacturer Grade

IC908

Functional Length (Decimal Inch)

0.7500

Milling Tip Full Description

MM HC.625C63R016-2T10

Extension From Holder (Inch)

0.7500

Product Overview
T-Slot Replaceable Milling Tip: MMHC.625C63R0162T10 90 IC908, Carbide 2 Flutes, 0.6" Max Depth of Cut, Series Multimaster
