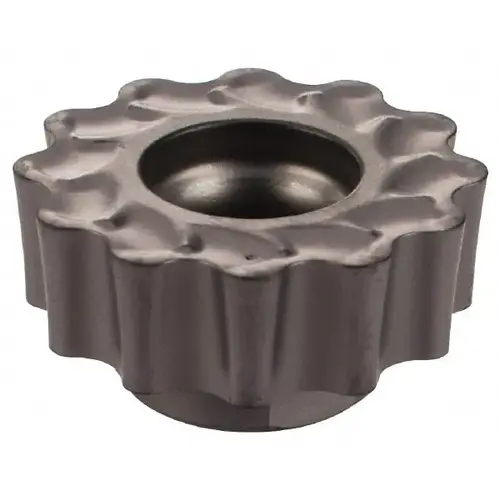

Iscar 5604132-XCP10 Milling Insert: RCMT 1607-FW, IC908, Solid Carbide - pack of 10
Item #: 5604132-XCP10 by Iscar
See reviewsSee reviews
Use Code: SAVEBIG2025 for Extra 10% Off
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Primary Workpiece Material Code
P
Thickness (Decimal Inch - 4 Decimals)
0.1970
Vendor Drop Ship
N
Width (Decimal Inch - 4 Decimals)
0.6299
Coating Classification
PVD
Insert Holding Method
Screw
Maximum Depth of Cut (Decimal Inch)
0.3150
Multi-use Tool
Yes
Rake
Positive
Insert Hand
Neutral
Inscribed Circle (Decimal Inch)
0.6299
Insert Shape
Round
Chip Breaker
FW
Secondary Workpiece Material Code
H
Insert Style
RCMT
Insert Size Code
1607
Relief Angle
7
Included Angle Degree
360
Cutting Edge Effective Length (Decimal Inch)
0.6299
Manufacturer Grade
IC908
Inscribed Circle Range (Decimal Inch)
0.6000 to 0.7000
Single or Double Sided Insert
Single
Cutter Series Compatibility
FRW
Length Range (Decimal Inch)
0.6000 to 0.6500
Thickness Range (Decimal Inch)
0.1850 to 0.2000
Inscribed Circle (mm)
16.00
Iso Code
RCMT 1607-FW
Primary Workpiece Material
Steel
Material Grade
Submicron
Manufacturers Catalog Number
RCMT 1607-FW IC908
Length (Decimal Inch - 4 Decimals)
0.6299
Corner Radius (Decimal Inch)
0.3150
Coating/Finish
TiAlN
Coating Process
PVD
Series
MILLSHRED
Insert Material
Solid Carbide
Standards
ANSI
Number of Cutting Edges
4
ANSI Code
RCMT 1607-FW IC908
Material Application
Steel
Cutting Edge Style
Segmented
Product Overview
Milling Insert: RCMT 1607-FW, IC908, Solid Carbide Coated, 0.1969" Thick
