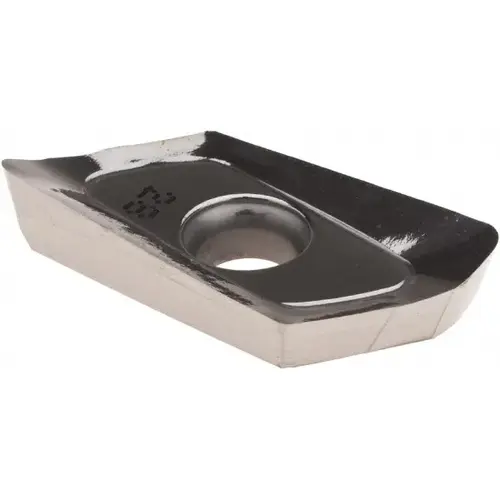

Milling Insert: HM90 APCR 220616R-P, IC28, Solid Carbide - pack of 10

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Iscar 5604912-XCP10 Milling Insert: HM90 APCR 220616R-P, IC28, Solid Carbide - pack of 10

Item #: 5604912-XCP10 by Iscar

See reviewsSee reviews
See reviews summary
In Stock

$818.93

/package
SAVE UP TO 81.89
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 5 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Honed

Material Application

Non-Ferrous Metal

ANSI Code

HM90 APCR 220616R-P IC28

Number of Cutting Edges

2

Standards

ANSI

Insert Material

Solid Carbide

Series

HELIALU

Coating Process

Uncoated

Coating/Finish

Bright/Uncoated

Corner Radius (Decimal Inch)

0.0630

Length (Decimal Inch - 4 Decimals)

1.1690

Manufacturers Catalog Number

HM90 APCR 220616R-P IC28

Primary Workpiece Material

Non-Ferrous Metal

Primary Workpiece Material Code

N

Thickness (Decimal Inch - 4 Decimals)

0.2720

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.5400

Coating Classification

Uncoated

Insert Holding Method

Screw

Maximum Depth of Cut (Decimal Inch)

0.8660

Multi-use Tool

Yes

Rake

Positive

Insert Hand

Right Hand

Inscribed Circle (Decimal Inch)

0.5400

Insert Shape

Parallelogram

Chip Breaker

P

Insert Style

APCR

Insert Size Code

220616

Relief Angle

11

Included Angle Degree

85

Cutting Edge Effective Length (Decimal Inch)

0.8700

Maximum Depth of Cut (mm)

22.10

Manufacturer Grade

IC28

Inscribed Circle Range (Decimal Inch)

0.5100 to 0.6000

Single or Double Sided Insert

Single

Cutter Series Compatibility

HM90-22

Length Range (Decimal Inch)

1.0000+

Thickness Range (Decimal Inch)

0.2500 to 0.3500

Corner Radius (mm)

1.60

Iso Code

HM90 APCR 220616R-P

Product Overview
Milling Insert: HM90 APCR 220616R-P, IC28, Solid Carbide Uncoated, 0.2717" Thick, 0.5402" Wide
