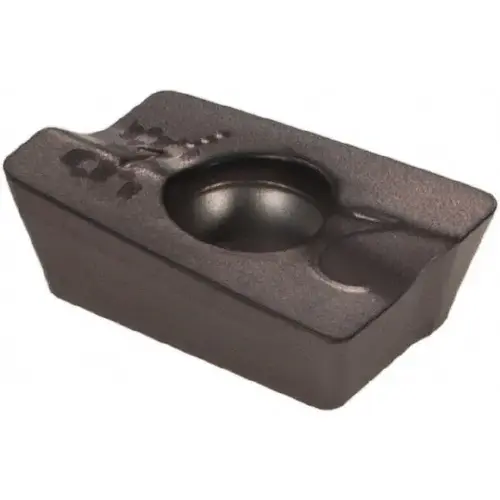

Iscar 5605154 Milling Insert: HM90 APKW 1003PDR, IC908, Solid Carbide TiAlN

Item #: 5605154 by Iscar

See reviewsSee reviews
See reviews summary
In Stock

$27.62

/each
SAVE UP TO 2.76
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 66 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Width (Inch)

17/64

Insert Material

Solid Carbide

Corner Radius (mm)

0.80

Vendor Drop Ship

N

Maximum Depth of Cut (Decimal Inch)

0.3860

Maximum Depth of Cut (mm)

10.25

Iso Code

HM90 APKW 1003PDR

Width (Decimal Inch - 4 Decimals)

0.2660

Thickness (Decimal Inch - 4 Decimals)

0.1380

Relief Angle

11

Cutting Edge Style

Honed

Cutter Series Compatibility

HM90-10

Rake

Positive

Material Grade

Submicron

Thickness Range (Decimal Inch)

0.1250 to 0.1500

Insert Holding Method

Screw

Coating/Finish

TiAlN

Corner Radius (Inch)

1/32

Insert Style

APKW

Manufacturers Catalog Number

HM90 APKW 1003PDR IC908

Insert Hand

Right Hand

Inscribed Circle Range (Decimal Inch)

0.2500 to 0.3000

Cutting Edge Effective Length (Decimal Inch)

0.4040

Manufacturer Grade

IC908

Inscribed Circle (Inch)

17/64

Length (Decimal Inch - 4 Decimals)

0.4520

Secondary Workpiece Material Code

H

Standards

ANSI

Inscribed Circle (Decimal Inch)

0.2660

Coating Process

PVD

Primary Workpiece Material

Steel

Corner Radius (Decimal Inch)

0.0315

Chip Breaker

PDR

Length Range (Decimal Inch)

0.4500 to 0.5000

Multi-use Tool

Yes

Coating Classification

PVD

Insert Size Code

1003

Included Angle Degree

85

Material Application

Steel

Number of Cutting Edges

2

ANSI Code

HM90 APKW 1003PDR IC908

Series

HELI2000

Insert Shape

Parallelogram

Single or Double Sided Insert

Single

Primary Workpiece Material Code

P

Product Overview
Milling Insert: HM90 APKW 1003PDR, IC908, Solid Carbide Coated, 0.1378" Thick, 0.266" Wide
