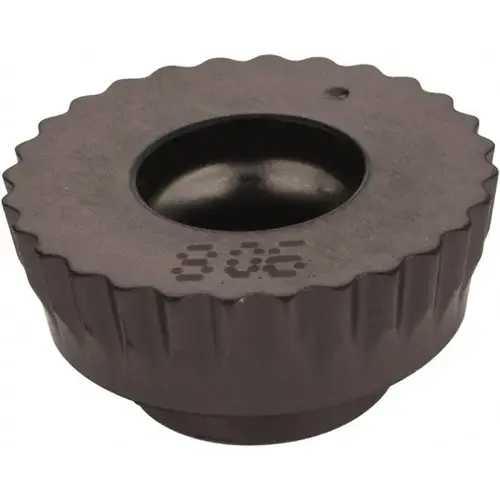

Milling Insert: RCMW 1607-T-FPW, IC908, Solid Carbide TiAlN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Iscar 5605276 Milling Insert: RCMW 1607-T-FPW, IC908, Solid Carbide TiAlN

Item #: 5605276 by Iscar

See reviewsSee reviews
See reviews summary

$31.66

/each
SAVE UP TO 3.17
Buying in bulk
Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Primary Workpiece Material Code

P

Single or Double Sided Insert

Single

Insert Shape

Round

Series

MILLSHRED

ANSI Code

RCMW 1607-T-FPW IC908

Number of Cutting Edges

4

Material Application

Steel

Included Angle Degree

360

Insert Size Code

1607

Coating Classification

PVD

Multi-use Tool

Yes

Length Range (Decimal Inch)

0.6000 to 0.6500

Chip Breaker

FPW

Corner Radius (Decimal Inch)

0.3150

Primary Workpiece Material

Steel

Coating Process

PVD

Inscribed Circle (Decimal Inch)

0.6299

Standards

ANSI

Secondary Workpiece Material Code

H

Inscribed Circle (mm)

16.00

Length (Decimal Inch - 4 Decimals)

0.6299

Manufacturer Grade

IC908

Cutting Edge Effective Length (Decimal Inch)

0.6299

Inscribed Circle Range (Decimal Inch)

0.6000 to 0.7000

Insert Hand

Neutral

Manufacturers Catalog Number

RCMW 1607-T-FPW IC908

Insert Style

RCMW

Rake Angle

15

Coating/Finish

TiAlN

Insert Holding Method

Screw

Thickness Range (Decimal Inch)

0.1850 to 0.2000

Material Grade

Submicron

Rake

Positive

Cutter Series Compatibility

FRW

Cutting Edge Style

Segmented

Relief Angle

7

Thickness (Decimal Inch - 4 Decimals)

0.1970

Width (Decimal Inch - 4 Decimals)

0.6299

Iso Code

RCMW 1607-T-FPW

Maximum Depth of Cut (Decimal Inch)

0.3150

Vendor Drop Ship

Y

Insert Material

Solid Carbide

Product Overview
Milling Insert: RCMW 1607-T-FPW, IC908, Solid Carbide Coated, 0.197" Thick
