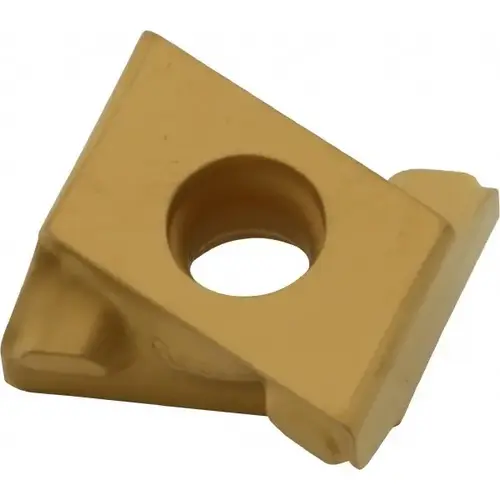

Milling Insert: LNMT 1506PN-R HT, IC4100, Solid Carbide TiCN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Iscar 5605428 Milling Insert: LNMT 1506PN-R HT, IC4100, Solid Carbide TiCN

Item #: 5605428 by Iscar

See reviewsSee reviews
See reviews summary

$31.03

/each
SAVE UP TO 3.10
Buying in bulk
Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

T-Land

Material Application

Cast Iron

ANSI Code

LNMT 1506PN-R HT IC4100

Number of Cutting Edges

4

Standards

ANSI

Insert Material

Solid Carbide

Series

TANGMILL

Coating Process

MTCVD

Coating/Finish

TiCN

Corner Radius (Decimal Inch)

0.0315

Length (Decimal Inch - 4 Decimals)

0.5906

Manufacturers Catalog Number

LNMT 1506PN-R HT IC4100

Primary Workpiece Material

Cast Iron

Primary Workpiece Material Code

K

Thickness (Decimal Inch - 4 Decimals)

0.5480

Vendor Drop Ship

Y

Width (Decimal Inch - 4 Decimals)

0.2360

Coating Classification

CVD

Insert Holding Method

Screw

Maximum Depth of Cut (Decimal Inch)

0.4720

Multi-use Tool

Yes

Rake

Negative

Insert Hand

Right Hand

Inscribed Circle (Decimal Inch)

0.2360

Corner Radius (Inch)

1/32

Insert Shape

Butterfly

Rake Angle

24

Chip Breaker

HT

Secondary Workpiece Material Code

H

Insert Style

LNMT

Insert Size Code

1506

Relief Angle

0

Included Angle Degree

90

Cutting Edge Effective Length (Decimal Inch)

0.5906

Maximum Depth of Cut (mm)

12.00

Manufacturer Grade

IC4100

Inscribed Circle Range (Decimal Inch)

0.0000 to 0.2500

Single or Double Sided Insert

Double

Cutter Series Compatibility

FDN

Length Range (Decimal Inch)

0.5000 to 0.6000

Thickness Range (Decimal Inch)

0.5000+

Corner Radius (mm)

0.80

Iso Code

LNMT 1506PN-R HT

Product Overview
Milling Insert: LNMT 1506PN-R HT, IC4100, Solid Carbide Coated, 0.5484" Thick, 0.2362" Wide
