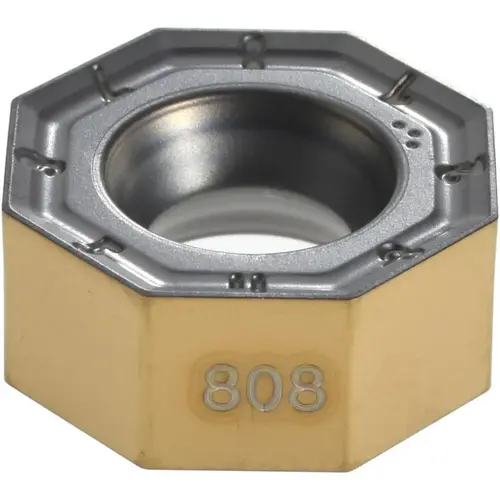

Milling Insert: ONMU 050505-TN-MM, IC808, Solid Carbide TiAlN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Iscar 5606051 Milling Insert: ONMU 050505-TN-MM, IC808, Solid Carbide TiAlN

Item #: 5606051 by Iscar

Brand: Iscar

See reviewsSee reviews
See reviews summary
In Stock

$44.28

/each
SAVE UP TO 4.43
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 960 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Custom Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features

Cutting Edge Style

T-Land

Material Application

Steel

ANSI Code

ONMU 050505-TN-MM IC808

Number of Cutting Edges

16

Standards

ANSI

Insert Material

Solid Carbide

Series

HELIDO

Coating Process

PVD

Coating/Finish

TiAlN

Corner Radius (Decimal Inch)

0.0197

Length (Decimal Inch - 4 Decimals)

0.5118

Manufacturers Catalog Number

ONMU 050505-TN-MM IC808

Material Grade

Submicron

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

Thickness (Decimal Inch - 4 Decimals)

0.2000

UNSPSC Code

23291601

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.5118

Coating Classification

Sumotec PVD

Insert Holding Method

Screw

Maximum Depth of Cut (Decimal Inch)

0.1380

Multi-use Tool

Yes

Rake

Negative

Insert Hand

Neutral

Inscribed Circle (Decimal Inch)

0.5118

Insert Shape

Octagon

Chip Breaker

MM

Secondary Workpiece Material Code

H

Insert Style

ONMU

Insert Size Code

050505

Relief Angle

0.00

Included Angle Degree

135

Cutting Edge Effective Length (Decimal Inch)

0.1380

Maximum Depth of Cut (mm)

3.50

Manufacturer Grade

IC808

Inscribed Circle Range (Decimal Inch)

0.5100 to 0.6000

Single or Double Sided Insert

Double

Cutter Series Compatibility

FF SOF

Length Range (Decimal Inch)

0.5000 to 0.6000

Thickness Range (Decimal Inch)

0.2000 to 0.2200

Inscribed Circle (mm)

13.00

Corner Radius (mm)

0.50

Iso Code

ONMU 050505-TN-MM

Product Overview
Milling Insert: ONMU 050505-TN-MM, IC808, Solid Carbide Coated, 0.2047" Thick, 0.5118" Wide
