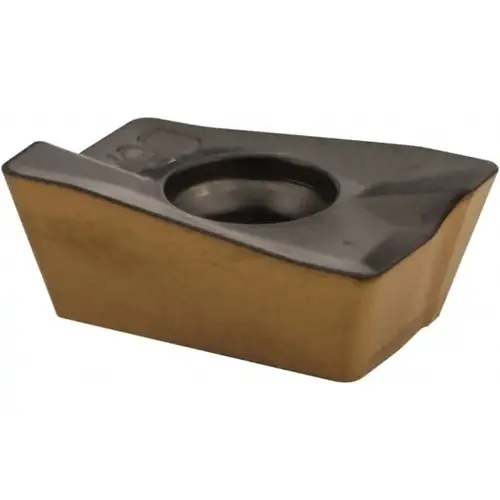

Milling Insert: HM90 ADKT 1505PDR, IC830, Solid Carbide AlTiN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Iscar 5606330 Milling Insert: HM90 ADKT 1505PDR, IC830, Solid Carbide AlTiN

Item #: 5606330 by Iscar

See reviewsSee reviews
See reviews summary
In Stock

$33.30

/each
SAVE UP TO 3.33
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 462 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Insert Material

Solid Carbide

Corner Radius (mm)

0.80

Vendor Drop Ship

N

Maximum Depth of Cut (Decimal Inch)

0.4720

Maximum Depth of Cut (mm)

12.00

Iso Code

HM90 ADKT 1505PDR

Width (Decimal Inch - 4 Decimals)

0.3800

Thickness (Decimal Inch - 4 Decimals)

0.2300

Relief Angle

15

Cutting Edge Style

Honed

Cutter Series Compatibility

HM90-15

Rake

Positive

Thickness Range (Decimal Inch)

0.2200 to 0.2350

Insert Holding Method

Screw

Coating/Finish

AlTiN

Corner Radius (Inch)

1/32

Insert Style

ADKT

Manufacturers Catalog Number

HM90 ADKT 1505PDR IC830

Insert Hand

Right Hand

Inscribed Circle Range (Decimal Inch)

0.3500 to 0.4000

Cutting Edge Effective Length (Decimal Inch)

0.5710

Manufacturer Grade

IC830

Length (Decimal Inch - 4 Decimals)

0.6370

Secondary Workpiece Material Code

S

Standards

ANSI

Inscribed Circle (Decimal Inch)

0.3800

Coating Process

PVD

Primary Workpiece Material

Steel

Corner Radius (Decimal Inch)

0.0315

Chip Breaker

PDR

Length Range (Decimal Inch)

0.6000 to 0.6500

Multi-use Tool

Yes

Coating Classification

Sumotec PVD

Insert Size Code

1505

Included Angle Degree

85

Material Application

Steel

Number of Cutting Edges

2

ANSI Code

HM90 ADKT 1505PDR IC830

Series

HELI2000

Insert Shape

Parallelogram

Single or Double Sided Insert

Single

Primary Workpiece Material Code

P

Product Overview
Milling Insert: HM90 ADKT 1505PDR, IC830, Solid Carbide Coated, 0.2303" Thick, 0.3799" Wide
