Features
Cutting Edge Style
T-Land
Material Application
Steel
ANSI Code
ONMU 050505-TN-MM IC330
Number of Cutting Edges
16
Standards
ANSI
Insert Material
Solid Carbide
Series
HELIDO
Coating Process
PVD
Coating/Finish
TiCN
Corner Radius (Decimal Inch)
0.0197
Length (Decimal Inch - 4 Decimals)
0.5118
Manufacturers Catalog Number
ONMU 050505-TN-MM IC330
Primary Workpiece Material
Steel
Primary Workpiece Material Code
P
Thickness (Decimal Inch - 4 Decimals)
0.2000
Vendor Drop Ship
N
Width (Decimal Inch - 4 Decimals)
0.5118
Coating Classification
PVD
Insert Holding Method
Screw
Maximum Depth of Cut (Decimal Inch)
0.1380
Multi-use Tool
Yes
Rake
Negative
Insert Hand
Neutral
Inscribed Circle (Decimal Inch)
0.5118
Insert Shape
Octagon
Rake Angle
24
Chip Breaker
MM
Secondary Workpiece Material Code
S
Insert Style
ONMU
Insert Size Code
050505
Relief Angle
0
Included Angle Degree
135
Cutting Edge Effective Length (Decimal Inch)
0.1380
Maximum Depth of Cut (mm)
3.50
Manufacturer Grade
IC330
Inscribed Circle Range (Decimal Inch)
0.5100 to 0.6000
Single or Double Sided Insert
Double
Cutter Series Compatibility
FF SOF
Length Range (Decimal Inch)
0.5000 to 0.6000
Thickness Range (Decimal Inch)
0.2000 to 0.2200
Inscribed Circle (mm)
13.00
Corner Radius (mm)
0.50
Iso Code
ONMU 050505-TN-MM
Product Overview

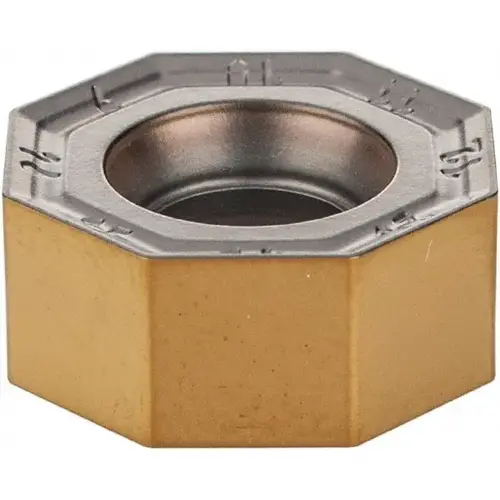

Milling Insert: ONMU 050505-TN-MM, IC330, Solid Carbide Coated, 0.2047" Thick
