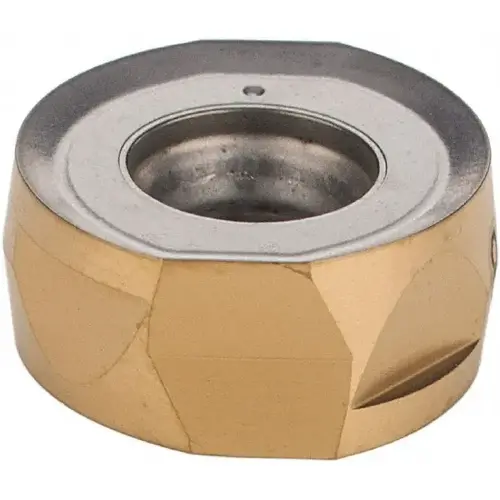

Milling Insert: H400 RNHU 1205-HP, IC830, Solid Carbide - pack of 10

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Iscar 5606449-XCP10 Milling Insert: H400 RNHU 1205-HP, IC830, Solid Carbide - pack of 10

Item #: 5606449-XCP10 by Iscar

See reviewsSee reviews
See reviews summary

The item is currently out of stock and it may or may not be restocked
OUT OF STOCK

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Continuous

Material Application

Steel

ANSI Code

H400 RNHU 1205-HP IC830

Number of Cutting Edges

4

Standards

ANSI

Insert Material

Solid Carbide

Series

HELIDO

Coating Process

PVD

Coating/Finish

AlTiN

Corner Radius (Decimal Inch)

0.2362

Length (Decimal Inch - 4 Decimals)

0.4720

Manufacturers Catalog Number

H400 RNHU 1205-HP IC830

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

Thickness (Decimal Inch - 4 Decimals)

0.1870

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.4720

Coating Classification

Sumotec PVD

Insert Holding Method

Screw

Maximum Depth of Cut (Decimal Inch)

0.2362

Multi-use Tool

Yes

Rake

Negative

Insert Hand

Neutral

Inscribed Circle (Decimal Inch)

0.4330

Insert Shape

Round

Rake Angle

14

Chip Breaker

HP

Secondary Workpiece Material Code

S

Insert Style

RNHU

Insert Size Code

1205

Relief Angle

0

Included Angle Degree

360

Cutting Edge Effective Length (Decimal Inch)

0.4720

Maximum Depth of Cut (mm)

8.70

Manufacturer Grade

IC830

Inscribed Circle Range (Decimal Inch)

0.4000 to 0.5000

Single or Double Sided Insert

Double

Cutter Series Compatibility

H400-12

Length Range (Decimal Inch)

0.4500 to 0.5000

Thickness Range (Decimal Inch)

0.1850 to 0.2000

Corner Radius (mm)

6.00

Iso Code

H400 RNHU 1205-HP

Product Overview
Milling Insert: H400 RNHU 1205-HP, IC830, Solid Carbide Coated, 0.187" Thick, 0.441" Wide
