30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
Cutting Edge Style
Helical
Material Application
Steel
ANSI Code
S845 SXCU 160608AD-RMM IC330
Number of Cutting Edges
8
Standards
ANSI
Insert Material
Solid Carbide
Series
HELIDO
Coating Process
PVD
Coating/Finish
TiCN
Corner Radius (Decimal Inch)
0.0315
Length (Decimal Inch - 4 Decimals)
0.6437
Manufacturers Catalog Number
S845 SXCU 160608AD-RMM IC330
Primary Workpiece Material
Steel
Primary Workpiece Material Code
P
Thickness (Decimal Inch - 4 Decimals)
0.2930
UNSPSC Code
23291601
Vendor Drop Ship
N
Width (Decimal Inch - 4 Decimals)
0.6437
Width (mm - 2 Decimals)
16.35
Coating Classification
PVD
Insert Holding Method
Screw
Maximum Depth of Cut (Decimal Inch)
0.2810
Multi-use Tool
Yes
Rake
Negative
Insert Hand
Right Hand
Inscribed Circle (Decimal Inch)
0.6378
Corner Radius (Inch)
1/32
Insert Shape
Square
Chip Breaker
RMM
Secondary Workpiece Material Code
S
Insert Style
SXCU
Insert Size Code
160608
Relief Angle
0.00
Included Angle Degree
90
Cutting Edge Effective Length (Decimal Inch)
0.6122
Maximum Depth of Cut (mm)
7.15
Manufacturer Grade
IC330
Inscribed Circle Range (Decimal Inch)
0.6000 to 0.7000
Single or Double Sided Insert
Double
Cutter Series Compatibility
S845 F45SX
Length Range (Decimal Inch)
0.6000 to 0.6500
Thickness Range (Decimal Inch)
0.2500 to 0.3500
Corner Radius (mm)
0.80
Iso Code
S845 SXCU 160608AD-RMM
Product Overview

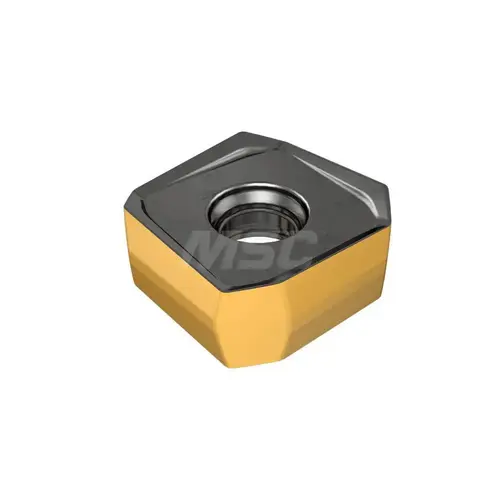

Milling Insert: S845 SXCU 160608AD-RMM, IC330, Solid Carbide Coated, 0.3004" Thick, 16.35 mm Wide
