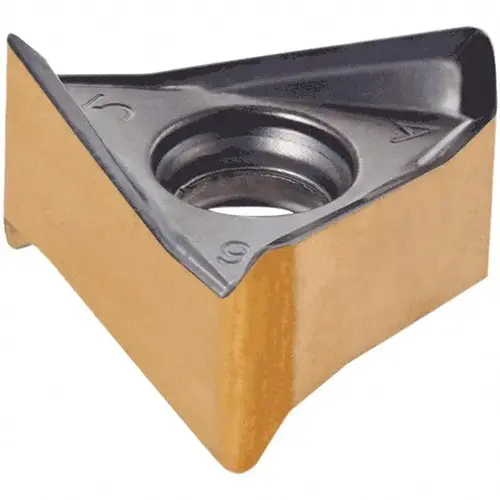

Milling Insert: H690 TNKX 100504PNTR, IC830, Solid Carbide - pack of 10

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Iscar 5607748-XCP10 Milling Insert: H690 TNKX 100504PNTR, IC830, Solid Carbide - pack of 10

Item #: 5607748-XCP10 by Iscar

See reviewsSee reviews
See reviews summary
In Stock

$423.47

/package
SAVE UP TO 42.35
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 8 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Insert Material

Solid Carbide

Corner Radius (mm)

0.40

Vendor Drop Ship

N

Maximum Depth of Cut (Decimal Inch)

0.3150

Maximum Depth of Cut (mm)

8.00

Iso Code

H690 TNKX 100504PNTR

Width (Decimal Inch - 4 Decimals)

0.3340

Thickness (Decimal Inch - 4 Decimals)

0.1850

Relief Angle

0

Thickness (mm)

4.70

Cutting Edge Style

Helical

Cutter Series Compatibility

H690-10

Rake

Negative

Thickness Range (Decimal Inch)

0.1850 to 0.2000

Insert Holding Method

Screw

Coating/Finish

AlTiN

Corner Radius (Inch)

1/64

Insert Style

TNKX

Manufacturers Catalog Number

H690 TNKX 100504PNTR IC830

Insert Hand

Right Hand

Inscribed Circle Range (Decimal Inch)

0.0000 to 0.2500

Cutting Edge Effective Length (Decimal Inch)

0.3150

Manufacturer Grade

IC830

Length (Decimal Inch - 4 Decimals)

0.3340

Inscribed Circle (mm)

6.20

Secondary Workpiece Material Code

S

Standards

ANSI

Inscribed Circle (Decimal Inch)

0.2441

Coating Process

PVD

Primary Workpiece Material

Steel

Corner Radius (Decimal Inch)

0.0157

Chip Breaker

PNTR

Length Range (Decimal Inch)

0.3200 to 0.4000

Multi-use Tool

Yes

Length (mm)

8.48

Coating Classification

Sumotec PVD

Insert Size Code

100504

Included Angle Degree

60

Material Application

Steel

Number of Cutting Edges

6

ANSI Code

H690 TNKX 100504PNTR IC830

Series

HELIDO

Insert Shape

Triangle

Single or Double Sided Insert

Double

Primary Workpiece Material Code

P

Product Overview
Milling Insert: H690 TNKX 100504PNTR, IC830, Solid Carbide Coated, 4.7 mm Thick
