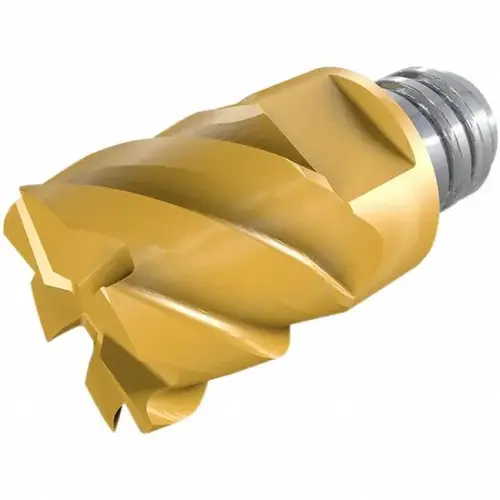

Iscar 5622509 End Replaceable Milling Tip: MMEC.500D37C0046T08 IC903, Carbide TiAlN

Item #: 5622509 by Iscar

See reviewsSee reviews
See reviews summary
In Stock

$172.50

/each
SAVE UP TO 17.25
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 18 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Helix Angle

50

Number of Flutes

6

Standards

ANSI

Tool Material

Carbide

Chipbreaker

None

Series

MM EC-D

Coating Process

PVD

Coating/Finish

TiAlN

Coolant Through

No

Corner Radius (Decimal Inch)

0.0000

Length Of Cut (Decimal Inch - 4 Decimals)

0.3700in

Manufacturers Catalog Number

5622509

Material Grade

Ultra Fine Grain

Overall Length (Decimal Inch)

0.6500in

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

UNSPSC Code

23291601

Vendor Drop Ship

N

Cutting Width (Decimal Inch)

0.5000in

Lead Angle

90

Maximum Depth of Cut (Decimal Inch)

0.3700

Insert Hand

Right Hand

Chamfer Angle

45degree

Included Angle Degree

90

Milling Tip Style

MM EC-D

Milling Tip Type

End

Manufacturer Grade

IC903

Functional Length (Decimal Inch)

0.6500

Milling Tip Full Description

MM EC.500D37C004-6T08

Extension From Holder (Inch)

0.6500

Product Overview
End Replaceable Milling Tip: MMEC.500D37C0046T08 IC903, Carbide 6 Flutes, 0.37" Max Depth of Cut, Series Multimaster
