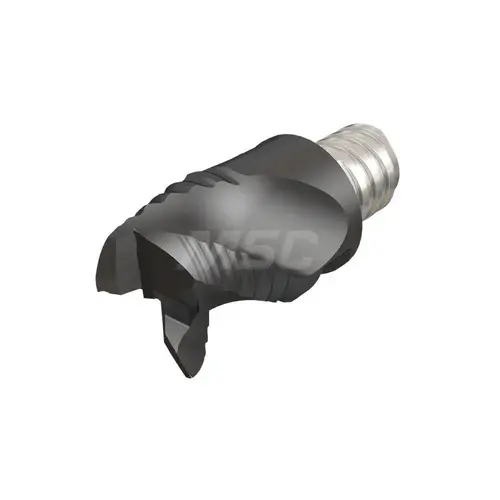

Iscar 5622745 End Replaceable Milling Tip: MMERA.312B20R0083T05 IC08, Carbide Bright/Uncoated

Item #: 5622745 by Iscar

See reviewsSee reviews
See reviews summary
In Stock

$120.74

/each
SAVE UP TO 12.07
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 8 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Vendor Drop Ship

N

Length Of Cut (Decimal Inch - 4 Decimals)

0.2100

Cutting Width (Decimal Inch)

0.312

Maximum Depth of Cut (Decimal Inch)

0.2100

Milling Tip Type

Roughing

Extension From Holder (Inch)

0.3900

Material Grade

Sub Micrograin

Helix Angle

45

Coating/Finish

Bright/Uncoated

UNSPSC Code

23291601

Manufacturers Catalog Number

5622745

Insert Hand

Right Hand

Manufacturer Grade

IC08

Number of Flutes

3

Lead Angle

90

Chipbreaker

Common

Standards

ANSI

Primary Workpiece Material

Steel

Corner Radius (Decimal Inch)

0.0080

Milling Tip Full Description

MM ERA.312B20R008-3T05 08

Overall Length (Decimal Inch)

0.39

Cutting Diameter (Decimal Inch)

0.3120

Milling Tip Style

MM ERA

Coolant Through

No

Functional Length (Decimal Inch)

0.3900

Included Angle Degree

90

Chamfer Angle

0

Series

MM ERA

Primary Workpiece Material Code

P

Tool Material

Carbide

Product Overview
End Replaceable Milling Tip: MMERA.312B20R0083T05 IC08, Carbide 3 Flutes, 0.21" Max Depth of Cut, Series Multimaster
