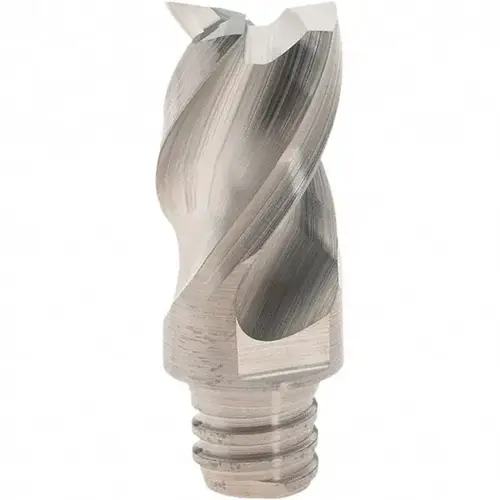

End Replaceable Milling Tip: MMEA120H12R0.2CF3T08 IC08, Carbide Bright/Uncoated

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Iscar 5623051 End Replaceable Milling Tip: MMEA120H12R0.2CF3T08 IC08, Carbide Bright/Uncoated

Item #: 5623051 by Iscar

See reviewsSee reviews
See reviews summary
HURRY! Low in stock

$154.86

/each
SAVE UP TO 15.49
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 1 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Helix Angle

40

Number of Flutes

3

Standards

ANSI

Tool Material

Carbide

Chipbreaker

None

Series

MM EA-CF

Coating/Finish

Bright/Uncoated

Coolant Through

No

Corner Radius (Decimal Inch)

0.0079

Length Of Cut (Decimal Inch - 4 Decimals)

0.4728in

Manufacturers Catalog Number

5623051

Material Grade

Sub Micrograin

Overall Length (Inch)

29/32in

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

UNSPSC Code

23291601

Vendor Drop Ship

N

Cutting Width (Decimal Inch)

0.4728in

Lead Angle

90

Maximum Depth of Cut (Decimal Inch)

0.4728

Insert Hand

Right Hand

Cutting Diameter (Decimal Inch)

0.4728

Cutting Diameter (mm)

12.00

Chamfer Angle

0degree

Included Angle Degree

90

Milling Tip Style

MM EA-CF

Maximum Depth of Cut (mm)

12

Milling Tip Type

Roughing

Manufacturer Grade

IC08

Functional Length (Decimal Inch)

0.9062

Milling Tip Full Description

MM EA120H12R0.2CF-3T08

Extension From Holder (Inch)

0.9055

Extension From Holder (mm)

23.00

Product Overview
End Replaceable Milling Tip: MMEA120H12R0.2CF3T08 IC08, Carbide 3 Flutes, 12 mm Max Depth of Cut, Series ChatterFree/Multimaster
