Features
Insert Material
Solid Carbide
Corner Radius (mm)
1.00
Vendor Drop Ship
N
Maximum Depth of Cut (Decimal Inch)
0.3150
Maximum Depth of Cut (mm)
8.00
Iso Code
S845 SNMU 1806ANR-MM
Width (Decimal Inch - 4 Decimals)
0.7402
Thickness (Decimal Inch - 4 Decimals)
0.2760
Relief Angle
0.00
Thickness (mm)
7.00
Cutting Edge Style
Helical
Cutter Series Compatibility
SOF45
Rake
Negative
Thickness Range (Decimal Inch)
0.2500 to 0.3500
Insert Holding Method
Screw
Coating/Finish
AlTiN
Width (mm - 2 Decimals)
3.50
UNSPSC Code
23291601
Insert Style
SNMU
Manufacturers Catalog Number
S845 SNMU 1806ANR-MM IC845
Insert Hand
Neutral
Inscribed Circle Range (Decimal Inch)
0.7000 to 1.0000
Cutting Edge Effective Length (Decimal Inch)
0.1380
Manufacturer Grade
IC845
Length (Decimal Inch - 4 Decimals)
0.7402
Inscribed Circle (mm)
18.80
Standards
ANSI
Inscribed Circle (Decimal Inch)
0.7402
Coating Process
PVD
Primary Workpiece Material
Steel
Corner Radius (Decimal Inch)
0.0394
Chip Breaker
MM
Length Range (Decimal Inch)
0.7000 to 0.9000
Multi-use Tool
Yes
Coating Classification
Sumotec PVD
Insert Size Code
1806
Included Angle Degree
90
Material Application
Steel
Number of Cutting Edges
8
ANSI Code
S845 SNMU 1806ANR-MM IC845
Series
HELIDO
Insert Shape
Square
Single or Double Sided Insert
Double
Primary Workpiece Material Code
P
Product Overview

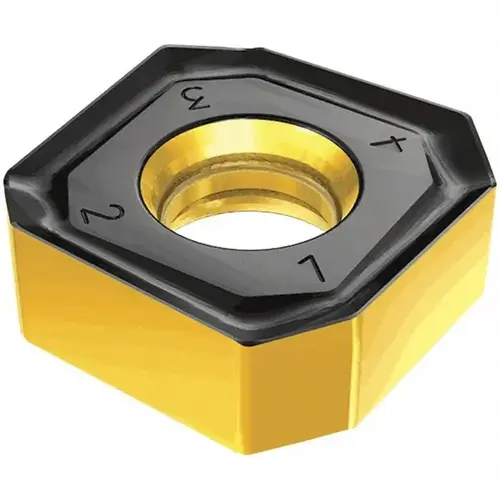

Milling Insert: S845 SNMU 1806ANR-MM, IC845, Solid Carbide Coated, 7 mm Thick, 3.5 mm Wide
