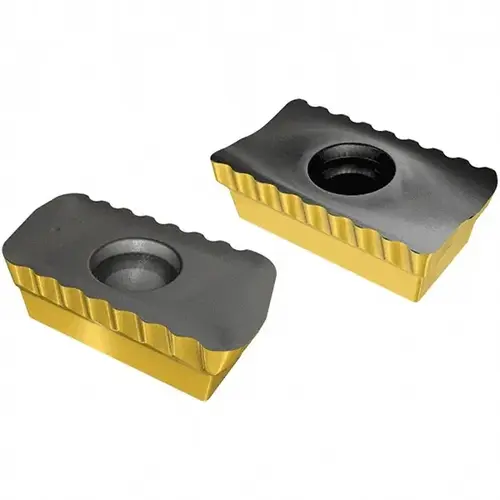

Milling Insert: P290 ACKT 1204PDR-FW, IC808, Solid Carbide - pack of 10

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Iscar 5668290-XCP10 Milling Insert: P290 ACKT 1204PDR-FW, IC808, Solid Carbide - pack of 10

Item #: 5668290-XCP10 by Iscar

Brand: Iscar

See reviewsSee reviews
See reviews summary
HURRY! Low in stock

$408.17

/package
SAVE UP TO 40.82
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 2 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Custom Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features

Insert Material

Solid Carbide

Corner Radius (mm)

0.90

Vendor Drop Ship

N

Maximum Depth of Cut (Decimal Inch)

0.4840

Iso Code

P290 ACKT 1204PDR-FW

Width (Decimal Inch - 4 Decimals)

0.3230

Thickness (Decimal Inch - 4 Decimals)

0.1730

Relief Angle

7.00

Thickness (mm)

4.40

Cutting Edge Style

Segmented

Cutter Series Compatibility

P290

Rake

Positive

Material Grade

Submicron

Thickness Range (Decimal Inch)

0.1500 to 0.1750

Insert Holding Method

Screw

Coating/Finish

TiAlN

Width (mm - 2 Decimals)

8.20

UNSPSC Code

23291601

Insert Style

ACKT

Manufacturers Catalog Number

P290 ACKT 1204PDR-FW IC808

Insert Hand

Right Hand

Inscribed Circle Range (Decimal Inch)

0.3000 to 0.3500

Cutting Edge Effective Length (Decimal Inch)

0.4840

Manufacturer Grade

IC808

Length (Decimal Inch - 4 Decimals)

0.5040

Secondary Workpiece Material Code

H

Standards

ANSI

Inscribed Circle (Decimal Inch)

0.3230

Coating Process

PVD

Primary Workpiece Material

Steel

Corner Radius (Decimal Inch)

0.0354

Chip Breaker

FW

Length Range (Decimal Inch)

0.5000 to 0.6000

Multi-use Tool

Yes

Product Service Code

3455

Length (mm)

12.80

Coating Classification

Sumotec PVD

Insert Size Code

1204

Included Angle Degree

85

Material Application

Steel

Number of Cutting Edges

2

ANSI Code

P290 ACKT 1204PDR-FW IC808

Series

MILLSHRED

Insert Shape

Parallelogram

Single or Double Sided Insert

Single

Primary Workpiece Material Code

P

Product Overview
Milling Insert: P290 ACKT 1204PDR-FW, IC808, Solid Carbide Coated, 4.4 mm Thick, 8.2 mm Wide
