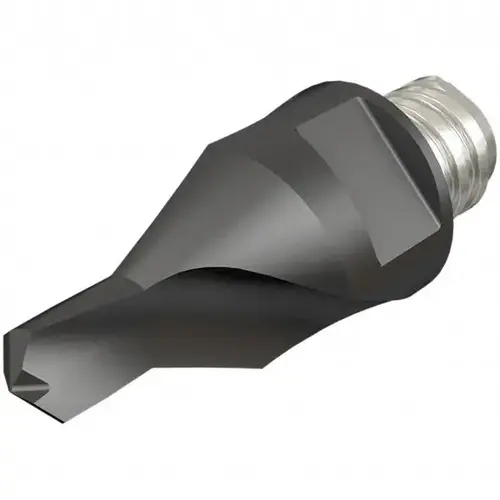

Iscar 5669257 Center Drill Replaceable Milling Tip: MMECS-A2.00X06-2T04 IC908, Carbide TiAlN

Item #: 5669257 by Iscar

See reviewsSee reviews
See reviews summary
In Stock

$150.13

/each
SAVE UP TO 15.01
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 24 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Number of Flutes

4

Standards

ANSI

Tool Material

Carbide

Chipbreaker

None

Series

MM ECS

Coating Process

PVD

Coating/Finish

TiAlN

Coolant Through

No

Manufacturers Catalog Number

5669257

Material Grade

Sub Micrograin

Overall Length (Decimal Inch)

0.3940in

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

UNSPSC Code

23291601

Vendor Drop Ship

N

Cutting Width (Decimal Inch)

0.0816in

Lead Angle

90

Insert Hand

Right Hand

Cutting Diameter (Decimal Inch)

0.0816

Cutting Diameter (mm)

16.00

Chamfer Angle

0degree

Included Angle Degree

120

Milling Tip Style

MM ECS

Milling Tip Type

Center Drill

Manufacturer Grade

IC908

Functional Length (Decimal Inch)

0.3940

Milling Tip Full Description

MM ECS-A2.00X06-2T04

Product Overview
Center Drill Replaceable Milling Tip: MMECS-A2.00X06-2T04 IC908, Carbide 4 Flutes, Series Multimaster
