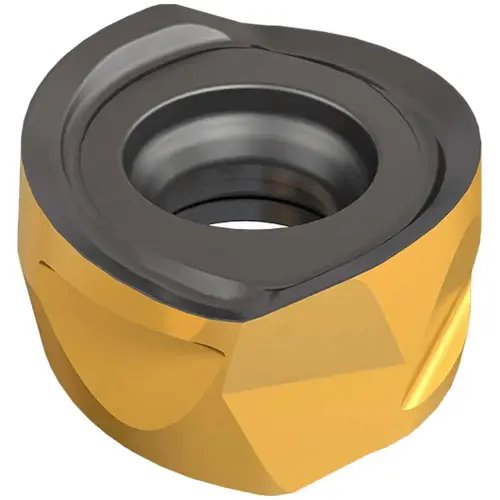

Milling Insert: H400 RNHU 1606-AX, IC330, Solid Carbide TiCN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Iscar 5684217 Milling Insert: H400 RNHU 1606-AX, IC330, Solid Carbide TiCN

Item #: 5684217 by Iscar

See reviewsSee reviews
See reviews summary
In Stock

$43.64

/each
SAVE UP TO 4.36
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 380 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Continuous

Material Application

Steel

ANSI Code

H400 RNHU 1606-AX IC330

Number of Cutting Edges

4

Standards

ANSI

Insert Material

Solid Carbide

Series

HELIDO

Coating Process

PVD

Coating/Finish

TiCN

Corner Radius (Decimal Inch)

0.3150

Length (Decimal Inch - 4 Decimals)

0.6299

Manufacturers Catalog Number

H400 RNHU 1606-AX IC330

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

Thickness (Decimal Inch - 4 Decimals)

0.3070

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.6299

Coating Classification

PVD

Insert Holding Method

Screw

Maximum Depth of Cut (Decimal Inch)

0.3150

Multi-use Tool

Yes

Rake

Negative

Insert Hand

Neutral

Inscribed Circle (Decimal Inch)

0.5790

Insert Shape

Round

Rake Angle

11

Chip Breaker

AX

Secondary Workpiece Material Code

S

Insert Style

RNHU

Insert Size Code

1606

Relief Angle

0

Included Angle Degree

360

Cutting Edge Effective Length (Decimal Inch)

0.6299

Maximum Depth of Cut (mm)

12.00

Manufacturer Grade

IC330

Inscribed Circle Range (Decimal Inch)

0.5100 to 0.6000

Single or Double Sided Insert

Double

Cutter Series Compatibility

H400-16

Length Range (Decimal Inch)

0.6000 to 0.6500

Thickness Range (Decimal Inch)

0.2500 to 0.3500

Corner Radius (mm)

8.00

Iso Code

H400 RNHU 1606-AX

Product Overview
Milling Insert: H400 RNHU 1606-AX, IC330, Solid Carbide Coated, 0.307" Thick, 0.5472" Wide
