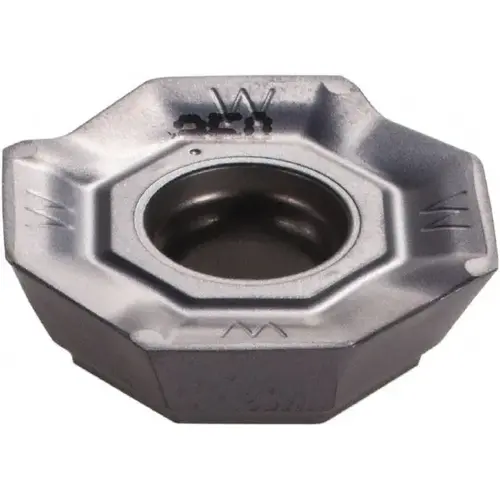

Iscar 5697588 Milling Insert: OFCT 07T3-AER, IC950, Solid Carbide TiAlN
Item #: 5697588 by Iscar
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Iso Code
OFCT 07T3-AER
Corner Radius (mm)
0.80
Thickness Range (Decimal Inch)
0.2000 to 0.2200
Length Range (Decimal Inch)
0.7000 to 0.9000
Cutter Series Compatibility
HOF-07
Single or Double Sided Insert
Single
Inscribed Circle Range (Decimal Inch)
0.7000 to 1.0000
Manufacturer Grade
IC950
Cutting Edge Effective Length (Decimal Inch)
0.0984
Included Angle Degree
135
Relief Angle
25
Insert Size Code
07T3
Insert Style
OFCT
Chip Breaker
AER
Insert Shape
Octagon
Inscribed Circle (Decimal Inch)
0.7441
Insert Hand
Neutral
Rake
Positive
Multi-use Tool
Yes
Maximum Depth of Cut (Decimal Inch)
0.0984
Insert Holding Method
Screw
Coating Classification
PVD
Width (Decimal Inch - 4 Decimals)
0.7441
Vendor Drop Ship
Y
Thickness (Decimal Inch - 4 Decimals)
0.2090
Primary Workpiece Material Code
P
Primary Workpiece Material
Steel
Material Grade
C1
Manufacturers Catalog Number
OFCT 07T3-AER IC950
Length (Decimal Inch - 4 Decimals)
0.7441
Corner Radius (Decimal Inch)
0.0630
Coating/Finish
TiAlN
Coating Process
PVD
Series
HELIOCTO
Insert Material
Solid Carbide
Standards
ANSI
Number of Cutting Edges
4
ANSI Code
OFCT 07T3-AER IC950
Material Application
Steel
Cutting Edge Style
Honed
Product Overview
Milling Insert: OFCT 07T3-AER, IC950, Solid Carbide Coated, 0.2087" Thick
