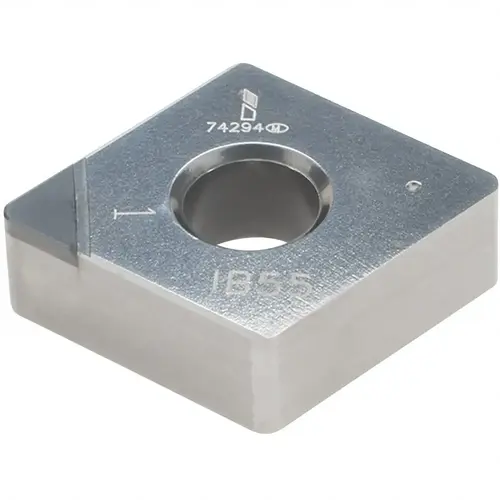

Iscar 5700514 CNMA432T IB55 CBN Turning Insert Uncoated

Item #: 5700514 by Iscar

See reviewsSee reviews
See reviews summary
HURRY! Low in stock

$112.13

/each
SAVE UP TO 11.21
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 2 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Standards

ISO 13399

Included Angle

80.0

Insert Material

Cubic Boron Nitride

Series

Isoturn

Coating Process

Uncoated

Coating/Finish

Uncoated

Corner Radius (Decimal Inch)

0.0313

Primary Workpiece Material

Cast Iron

Primary Workpiece Material Code

H

Vendor Drop Ship

N

Insert Holding Method

Clamp

Insert Length (Decimal Inch)

0.5080

Insert Thickness (Decimal Inch)

0.1875

Insert Thickness (Inch)

3/16

Maximum Depth of Cut (Decimal Inch)

0.0197

Inscribed Circle (Decimal Inch)

0.5000

Insert Length (mm)

12.90

Corner Radius (Inch)

1/32

Insert Shape

Diamond

Clearance Code

N

Insert Shape Code

C

Chip Breaker

T

Insert Style

CNMA

Insert Size Code

432

Tolerance Code

M

Relief Angle

0

Stocking Category

D

Inscribed Circle (Inch)

1/2

Maximum Depth of Cut (mm)

0.50

Manufacturer Grade

IB55

Single or Multi Tipped

Single Tipped

Length Range (Decimal Inch)

0.5000 - 0.6000

Iso Code

ISO 13399

Product Overview
CNMA432T IB55 CBN Turning Insert Uncoated, 12.9mm Long, 1/2" Inscribed Circle, 1/32" Corner Radius, 80 degree Diamond, Series Isoturn
