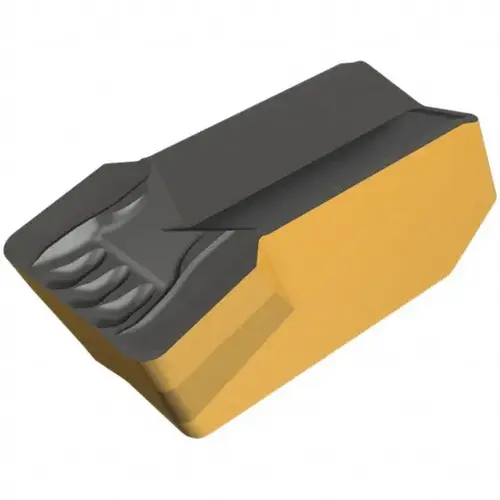

Grooving Insert: GIMY304Y IC804, Solid Carbide - pack of 10

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Iscar 6411672-XCP10 Grooving Insert: GIMY304Y IC804, Solid Carbide - pack of 10

Item #: 6411672-XCP10 by Iscar

See reviewsSee reviews
See reviews summary

The item is currently out of stock and it may or may not be restocked
OUT OF STOCK

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Overall Length (mm)

15.30

Standards

ISO 13399

Insert Material

Solid Carbide

Series

Cut Grip

Coating Process

PVD

Coating/Finish

AlTiN

Corner Radius (Decimal Inch)

0.0160

Manufacturers Catalog Number

6411672

Material Grade

Submicron

Overall Length (Decimal Inch)

0.6020

Overall Width (Decimal Inch - 4 Decimals)

0.0940

Primary Workpiece Material

Superalloy

Primary Workpiece Material Code

S

Vendor Drop Ship

Y

Cutting Width (Decimal Inch)

0.1180

Maximum Depth of Cut (Decimal Inch)

0.0200

Multi-use Tool

Yes

Overall Width (mm)

2.40

Rake

Positive

Rake Angle

7.00

Chip Breaker

Y

Insert Style

GIMY

Insert Size Code

304

Maximum Depth of Cut (mm)

2.50

Manufacturer Grade

IC804

Maximum Depth Of Cut Range (Decimal Inch)

0.0000 to 0.0750

Maximum Depth Of Cut Range (mm)

2.00 to 3.00

Corner Radius (mm)

0.40

Cutting Width (mm)

3.00

Iso Code

GIMY 304 IC804

Maximum Corner Radius (Decimal Inch)

0.0160

Product Overview
Grooving Insert: GIMY304Y IC804, Solid Carbide AlTiN Finish, 3 mm Cutting Width, 2.5 mm Max Depth, Series Cut-Grip
