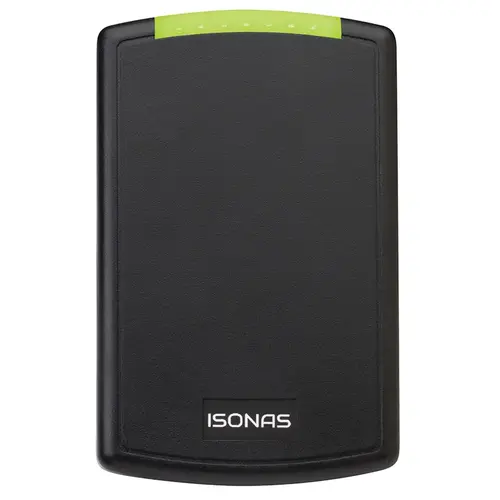

Isonas RC-04-MCT-WClick To Copy Pure IP, MCT Reader-Controller, Wall Mount, Single Gang, 125khz, 13.56 MHz, TCP/IP, DHCP, 8 Wire Pigtail, Indicating LEDs, Tamper Detection, PoE, 12VDC, IP56, FCC, UL, Black

Isonas PowerNet IP Reader-Controller, Smart Card, Single Gang mounting, 13.56MHz

The Pure IP hardware family from Isonas offers a suite of products that allow you to customize your access control solution. Our reader - controller continues to take advantage of our patented technology and remains an all in one intelligent device; eliminating the need for a panel and allowing you to take advantage of your existing network. The RC-04 reader controller is an all-in-one intelligent device that requires a single CAT5 cable to provide power and data; eliminating the need for a panel and providing a simpler and smarter alternative leveraging the IT network.

Features:

• Mullion, wall mount and wall mount keypad form factors allow for US and EU compatible mounting options; creating a simpler install process at each door
• Reader-controllers are available in two models: Multi-card technology (125 kHz and 13.56 MHz) or a proximity-only version (125 kHz)
• Bluetooth low energy (BLE) allows customers to utilize our pure mobile application and use their smart phone as their credential
• Local mode feature allows readers to function without a connection to the network. This results in faster user response times, less network traffic and reduced host system loading
• Tamper detection via accelerometer senses any type of altering and prevents a security breach with the reader
• Metal back plate provides additional security, a simple two-piece installation and consistent read range

Specifications:

• General:
• Mullion Dimensions: (5.1" x 1.7" x 0.75")
• Wall mount Dimensions: (5.1" x 3.25" x 0.75")
• Wall mount keypad Dimensions: (5.1" x 3.25" x 0.75")
• Low frequency, high frequency and Bluetooth low energy
• Made in the USA.
• Extension cable: 7.5in
• Adapter: 19mm diameter
• Power Options:
• Power over ethernet (PoE), (IEEE 802.3af, Class 0)
• DC power: 12VDC In (9 to 16V)
• Please note: 24V DC is not approved for this device
• Network Communications:
• 10Mb, half or full duplex
• Ethernet, TCP/IP, standard RJ45 cable
• Network host or client modes supported
• DHCP addressing supported
• Field flashable microcode
• Software Compatibility:
• Pure Access cloud
• Pure Access manager (on-premise)
• Open options
• Genetec
• Environmental:
• UL 294 V6 certified
• FCC certified
• Operating temperatures -40 degreeF to 135 degree F (-40 degreeC to 57 degreeC)
• Conformal coated for weather resistance
• Exposure ratings: IP56
• Outputs:
• 8 wire pigtail
• 600mA provided to power the lock
• Conditioned lock power
• Fail safe and fail secure supported
• Two exterior door kit outputs
• Two Configurable Inputs:
• Door sense
• General purpose request to exit(REX) or auxiliary(AUX)
• Visual Indicator:
• LED signal for reader status
• Backlit Keypad
• Security Features: Tamper detection via an accelerometer
• Read Range:
• 3" typical on RFID cards
• Proximity read speed: < 250msec
• Credential Types:
• 125 kHz (FSK modulation)
• 13.56MHz
• Bluetooth Low Energy Supported (4.1 and later)
• MiFare Classic, Ultralight, and MiFare Plus
• MiFare DESFire EV2 (Secure Data) Isonas Only
• iClass (CSN)
• ISO14443A & B
• Reader-controller intelligence capacity:
• 64,000 credentials
• 5,000 events
• 32 time schedules
