Pure IP, Proximity Reader-Controller, Mullion Mount, 125khz, TCP/IP, DHCP, 8 Wire Pigtail, Indicating LEDs, Tamper Detection, PoE, 12VDC, IP56, FCC, UL, Black

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

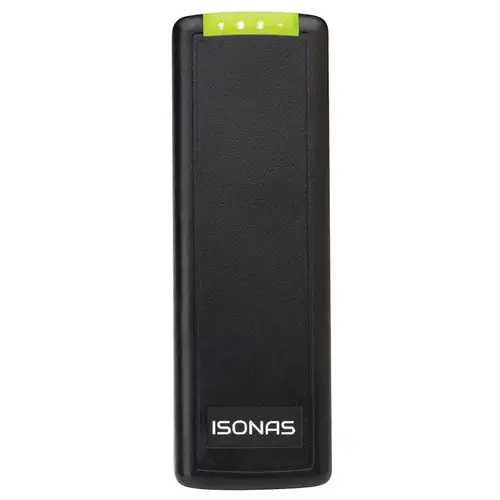

Isonas RC-04-PRX-M Pure IP, Proximity Reader-Controller, Mullion Mount, 125khz, TCP/IP, DHCP, 8 Wire Pigtail, Indicating LEDs, Tamper Detection, PoE, 12VDC, IP56, FCC, UL, Black

Item #: RC-04-PRX-M by Isonas

Brand: Isonas

See reviewsSee reviews
See reviews summary
In Stock

$1,412.34

1,472.41 /each
SAVE UP TO 141.23
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 94 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Custom Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
  • Bluetooth Low Energy (BLE) allows customers to utilize Pure Mobile application and use smart phone as their credential
  • Local mode feature allows readers to function without a connection to the network
  • Tamper detection via accelerometer senses any type of altering and prevents a security breach with the reader
  • Metal back plate provides additional security, a simple two piece installation and consistent read range
  • Capacity of 64,000 Credentials, 5,000 Events, & 32 Time Schedules
  • Power Options: Power Over Ethernet (PoE), DC Power (12VDC)
  • Certifications: UL 294 V6 Certified, FCC Certified
  • Outputs: 8 wire pigtail, 600mA provided to power the lock, Conditioned Lock Power, Fail Safe and Fail Secure Supported, 2 Exterior Door Kit Outputs

Dimensions

5.1" x 1.7" x 0.75"

Product Type

Proximity Reader

Alternate Part Number-1

161350

Product Depth

0.71 Inch

healthy_solution

Touchless

Manufacturer Parent

Allegion

Sub-Series

EAC_Access_Control_Kits_isonas_2

ADA Compliant

No

Number of Outputs

2 Inch

Product Height

1.7 Inch

Number of Inputs

2 Inch

Function Family

Part/Component

Voltage

12 VDC

Features

Pure IP™ Hardware Family From ISONAS Offers a Suite of Products That Allow You to Customize Your Access Control Solution; Our Reader -Controller Continues to Take Advantage of Our Patented Technology and Remains An All in One Intelligent Device

Product Length

5.1 Inch

Series

Parts/Accessories

Power

600mA

Model

PowerNet IP Reader-Controller

Parts and Accessories Type

Prox Readers & Keypads

Product Overview

Isonas PowerNet IP Reader-Controller, Proximity Card, Mullion mounting, 125kHz

The Pure IP hardware family from Isonas also includes a line of Wiegand readers. Fully customize your Pure IP solution with either our reader-controller or our PowerNet IP-Bridge connected to our Wiegand readers. Maintain the same aesthetic in your building by mixing and matching our hardware and maximizing the efficiency of the installation process.

Features:

  • Mullion, wall mount and wall mount keypad form factors allow for US and EU compatible mounting options; creating a simpler install process at each door.
  • All Wiegand readers available in multi-card technology (13.56MHz and 125kHz). Providing flexibility in credential model choice.
  • Bluetooth low energy (BLE) allows customers to utilize our pure mobile application and use their smart phone as their credential.
  • Tamper detection via accelerometer senses any type of altering and prevents a security breach with the reader.
  • Metal back plate provides additional security, a simple two piece installation and consistent read range.

Specifications:

  • General:
    • Mullion Dimensions: (5.1" x 1.7" x 0.71")
    • Wall mount Dimensions: (5.1" x 3.25" x 0.71")
    • Wall mount keypad Dimensions: (5.1"x 3.25" x 0.71")
    • Low frequency, high frequency and Bluetooth low energy
    • Made in the USA.
    • Material: plastic (ABS) and metal (SECC)
    • Compatible with Pure Access
  • Power Options:
    • DC power 5-16 V DC
    • Mullion: 106mA average, 144mA peak
    • Wall mount: 119mA average, 169mA peak
    • Wall mount KP: 143mA average, 193mA peak
  • Environmental:
    • FCC, IC and CE certified
    • Operating temperatures -40 degreeF to 158 degree F (-40 degreeC to 70 degreeC)
    • Accommodates indoor, outdoor and various other installation environments
    • Exposure ratings: IP55
  • Inputs/Outputs:
    • 8 wire pigtail for common Wiegand reader wiring
    • Blue: green LED control line (input)
    • Yellow: beeper control line (input)
    • Brown: tamper (output)
    • Orange: red LED control line(input)
    • White: Wiegand data 1
    • Green: Wiegand data 0
    • Black: ground
    • Drain: shield ground
    • Red: power (5-16V DC)
  • Visual Indicator:
    • Tristate LED light bar (red, green, amber) and buzzer
    • Backlit keypad
  • Read Range:
    • 3" typical on RFID cards
    • Proximity read speed: < 250msec
  • Credential Types:
    • 125 kHz (FSK modulation)
    • 13.56MHz
    • Bluetooth Low Energy Supported (4.1 and later)
    • MiFare Classic, Ultralight, and MiFare Plus
    • MiFare DESFire EV2 (Secure Data) Isonas Only
    • iClass (CSN)
    • ISO14443A, ISO 14443B, ISO 15693
