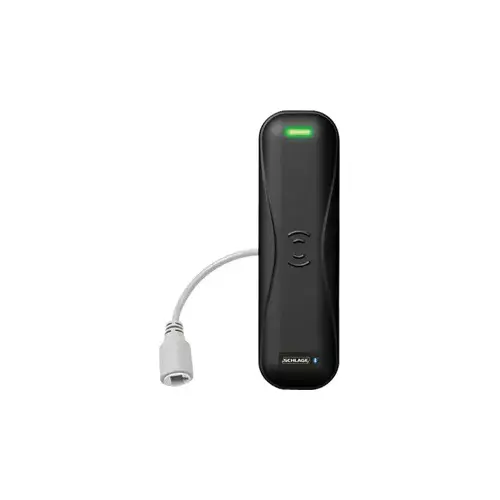

Isonas RC11Click To Copy RC Multi-Technology IP Reader-Controller, Mullion Mount, 125khz Proximity, 13.56 MHz Smart, 2.4 GHz Bluetooth, TLS1.2, DHCP, Indicating LED's, PoE+, 10-13VDC, IP65, FCC, CE, UL, Black

Isonas KIT - RC Multi-Technology IP Reader-Controller, Mullion Mount, 125khz Proximity, 13.56 MHz Smart, 2.4 GHz Bluetooth, TLS1.2, DHCP, Indicating LED's, PoE+, 10-13VDC, IP65, FCC, CE, UL

RC Series is an IP reader controller that combines patented Pure IP access control technology together with intelligent hardware, delivering a cost-effective all-in-one edge device that easily integrates into open PACS solutions. The RC connects to existing IT networks via a single PoE cable; reducing installation time and eliminating the need to run separate power to the door. The RC provides real-time connectivity with local mode feature, and can be managed in the same system as NDE and LE wireless locks. Mullion mount, multi-technology IP reader controller. RC Reader controllers provide both a modern look and an advanced feature set. Designed with technology to support Bluetooth, NFC (near field communication), smart credentials (13.56 MHz) and standard proximity credentials (125 kHz); end users can define their migration path to secure credentials.

Features:

• The RC contains 125 kHz proximity, 13.56 MHz smart and 2.4 GHz Bluetooth circuitry enabling the ability to process multiple formats simultaneously.
• Real time connectivity; local mode feature allows readers to function without a connection to the network. This results in faster user response times, less network traffic and reduced host system loading.
• Tamper detection via accelerometer senses any type of altering and prevents a security breach with the reader.
• Communication is secured using industry standard TLS 1.2 encryption.
• Supports network communication speeds of 10 or 100 mbps half or full duplex.
• Commission via ENGAGE mobile app for easy configuration.
• Three configurable inputs; door position (DPS), request to exit (REX), and auxiliary (AUX).
• Mullion, wall mount and wall mount with keypad form factors.
• Reader controllers support 125 kHZ proximity, 13.56 MHz smart technology, 2.4 GHz Bluetooth and near field communication (NFC).
• Credential parity standard with Schlage MTB mobile enabled multi-technology readers and Schlage mobile enabled wireless locks; Isonas credential parity is a factory orderable option.
• Accommodates interior, exterior, metal and non-metal installation environments.

Specifications:

• Model: RC11
• Reader Type: IP reader controller
• Mounting style: Mullion
• Standards: ISO 14443A, ISO 15693
• Certifications: FCC Certification - IC certification - UL294 V7 / cUL listed - Red directive - CE Mark - IP65 - Reach - Bluetooth SIG - RoHS 3.
• Frequency: 2.4 GHz, 13.56 MHz and 125 kHz
• Intelligence Capacity: 64,000 credentials - 5,000 events - 32 time schedules - 32 holidays
• Network communications:
• 10/100Mb, half or full duplex
• Ethernet, WebSockets, standard Cat5E or better cable
• Network host or client modes - DHCP addressing
• Visual communications: LED (red, amber, green)
• Audible communications: Audible indicator (on/off)
• Software compatibility: Works with open PACS systems including Isonas Pure Access Cloud
• FIPS 201 compliant: No
• Technology supported: CSN, proximity, Smart, Mobile (NFC and Bluetooth)
• System interface: 2 TTL Lines/clock & data (for use with the advanced security module (ASM))
• Inputs: Request to exit (REX)/auxiliary input (AUX)/door position switch (DPS)
• Poe/PoE+ Pigtail: 26 AWG, CAT 5E, 8" length
• Tamper: Yes
• Physical dimensions: 5.94" x 1.77" x 1.0" (15.1cm x 4.5cm x 2.5cm)
• Operating temperatures: - 31 degreeF to 151 degreeF (- 40 degreeC to 66 degreeC)
• Weight: 5.8 oz
