Features
- Chilling Medium: Evaporator
- Power Requirements: 3.5A @ 12V DC; 1.7A @ 24V DC
- Cooling Capacity: 5.3cu.ft.
- Dimensions: Compressor: 11"L x 6"W x 6"D; Evaporator: 9"L x 12-1/2"W x 4"D
- Weight: 25lb.
- Plumbing Connections: Compressor: Quick disconnects; Evaporator: 6' precharged copper tubing with quick disconnects
- Electrical Connections: Hardwires to 12V or 24V DC electrical system
- Seawater Cooling Required: No Warranty: Five years
Capacity
Up to 5.3 Cubic Feet Refrigeration
Shape
Horizontal , Vertical
Dimensions
6" Width x 11" Length x 6" Depth
Warranty
FIVE YEARS
Amperage
3.5 Amps at 12 Volts DC
Family
Isotherm
Best Use
Most Common Box on Boats 25 to 35 Feet
Plumbing Connections
Quick-Connect Couplings
Refrigeration Component
Evaporator
Product Overview

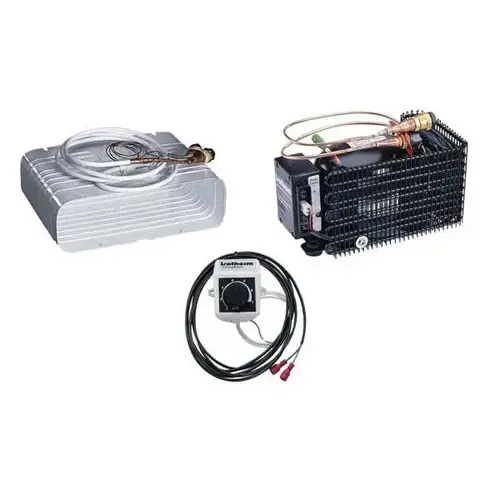

ISOTHERM Isotherm Compact 2301 Refrigeration Kit This easy to install kit comes complete with everything needed to refrigerate ice boxes up to 5.3cu.ft.-the most common ice box size on boats from 25 ft-35 ft. The reliable, power-saving Danfoss BD35 compressor draws just 3.5A @ 12V DC. The evaporator can be mounted vertically or horizontally and it acts like a freezer section-just like the freezer section of a cabinet refrigerator. Air-cooled systems for larger or smaller boxes are available by special order.
