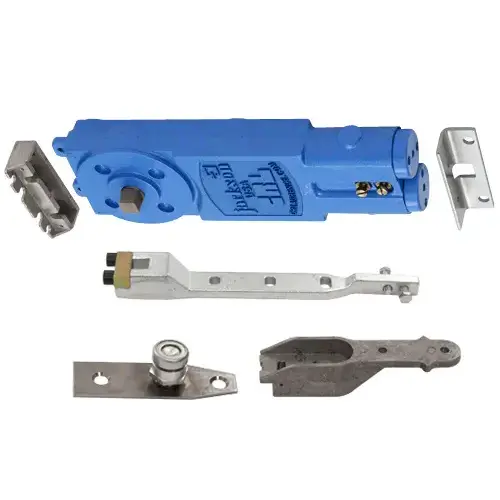

Jackson 21101AP17 Adjustable Spring Power 105 degree No Hold Open Overhead Concealed Closer with "AP" Hardware Package for 7/8" Top Rail
Item #: 21101AP17 by Jackson
In Stock $280.28 /each
Buying in bulk
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Suitable for Doors from 30" to 48" (762 mm to 1.22 m) Wide to Meet A.D.A. Opening Force Requirements
- Floor Mounted Pivot for 1-9/16" (40 mm) Deep Bottom Rail
- 5 Year Limited Warranty
- UL Listed
Spring Size
Adjustable
Type
Center Hung
Brand
Jackson
Body Length
11-5/8
Body Height
1-11/16
Body Width
3-11/16
Material
Aluminum
No Hold Open
105°
Maximum Door Weight
250
UL Listed
Yes
Includes
20101M17, 20219, 202000, 201060
Arm Type
End Load
Closer Type
Overhead Concealed
Recommended Door Type
Aluminum, Hollow Metal
Top Rail Depth (Inches)
1
Similar
CRL8772A, 21101A17
Americans with Disabilities Act (ADA) Compliant
Yes
Bottom Door Rail Depth (Inches)
1-9/16
Replacement Parts
ELB2, ELS1
Bottom Pivot Type
Floor Mount Pivot
Spindle Length (Inches)
1/2
Handing
Double Acting
Degree Hold Open
105°
Hold Open
No
Top Rail Depth
1
Bottom Door Rail Depth
1-9/16
Spindle
1/2
This CRL Jackson® Adjustable Spring Power Overhead Concealed Door Closer is available for A.D.A Barrier-Free applications. The Door Closer is adjustable in a range of Sizes from 1 (Barrier-Free) through 4 (Regular), allowing the spring power to be set for A.D.A. handicap barrier-free opening force requirements, as well as provide door control for a wide range of door types and sizes. This should make it your #1 choice for versatility and adaptability in a range of conditions.
A.D.A. NOTE: Although the Adjustable Spring Power Door Closer can be adjusted to compensate for site conditions, adequate closing force might not be obtained while complying with A.D.A. opening force requirements.
NOTE: An auxiliary floor or overhead door stop is recommended to prevent possible damage to both the door closer and entry way due to over-extension of maximum allowable door swing.
Product Warning:
Closers set to comply with A.D.A. specified opening forces might not provide adequate spring power to control and close the door due to varying site conditions and door size.
.
