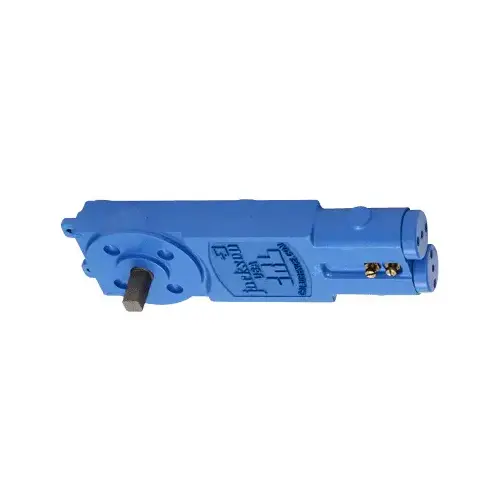

Jackson 20106M17 Adjustable Spring Power 105 degree No Hold Open Overhead Concealed Closer Body with 1-13/64" Extra Long Spindle
Item #: 20106M17 by Jackson
In Stock $206.59 /each
Buying in bulk
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Adjustable Spring Power Size 1 to 4 Closer Body
- Maximum Adjustability for ADA Requirements vs. Stack Pressure
- Patented Dual Compression Technology Adjustable Spring Power Sizes 2-4
- Longer 1-13/64" Spindle for Use with Patch Fittings and Rail Hardware
- Extra Long 1-13/64" Spindle for Use with Patch Fittings and Rail Hardware 105º No-Hold
- For ADA Barrier-Free Applications
- Extra long 1-13/64" Spindle for Use with Patch Fittings and Rail Hardware 105° No Hold Open
- U.L. Listed with a Five Year Limited Warranty
Length
11-5/8" (295 mm)
Shipping Weight
8 lb (3.63kg)
Width
3-11/16" (94 mm)
Brand
Jackson
Type
105º No Hold Open
Body Length
11-5/8
Body Height
1-11/16
Body Width
3-11/16
Handing
Double Acting
Spring Size
Adjustable
No Hold Open
105°
Maximum Door Weight
250
UL Listed
Yes
Door Height
96
Closer Type
Overhead Concealed
Recommended Door Type
Aluminum,Hollow Metal
Americans with Disabilities Act (ADA) Compliant
Yes
Maximum Door Width - Exterior
42 Inches
Spindle Length (Inches)
1-13/64
Maximum Door Width - Interior
36 Inches
Spindle
1-13/64 in. (30.6 mm)
This CRL Jackson® Adjustable Spring Power Overhead Concealed Closer Body is designed for A.D.A. barrier-free applications and features an extra long 1-13/64" spindle for that extra "bite" when used in conjunction with Patch Fittings or rail hardware on all glass doors. Its spring power is adjustable from a size 2 through 4 using Patented Dual Compression Technology which provides finer spring tension adjustment and greater spring efficiency. With fully independent valves, this closer affords maximum adjustability when trying to balance building codes, stack pressure and keeping the door closed. It will easily retrofit most all fixed spring size Overhead Concealed Closers and is the choice of professionals the world over.
Product Warning:
Closers set to comply with A.D.A. specified opening forces might not provide adequate spring power to control and close the door due to varying site conditions and door size. Mounting clips are not included with this closer body. Unless the existing mounting clips are used, you will need to purchase the appropriate clip package for your application. Contact Jackson® Technical Sales Department for assistance in selecting the correct Mounting Clip Package.
.
