Jackson 21201P31317 Adjustable Spring Power Multi Size 105 degree No Hold Open Overhead Concealed Closer With "P" Offset Slide-Arm Hardware Package Dark Bronze
Item #: 21201P31317 by CR Laurence
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- "P" Offset Slide-Arm Hardware Package for Doors with 5/8" Shallow Top Rails
- P Offset Slide-Arm Hardware Package for Doors with 5/8" Shallow Top Rails
- Spring Power Adjustable Closer Suitable for Doors From 30" to 42" (762 mm to 1.07 m) Wide
- Five Year Limited Warranty U.L. Listed
Length
11-5/8" (295 mm)
Width
3-11/16" (94 mm)
Brand
Jackson
Finish
Dark Bronze
Type
105º No Hold Open
Body Height
1-11/16
Body Width
3-11/16
Material
Aluminum
Handing
Non-Handed
Spring Size
Adjustable
No Hold Open
105°
Maximum Door Weight
250
UL Listed
Yes
Arm Type
"P" Offset Slide-Arm
Closer Type
Overhead Concealed
Finish/Color
Dark Bronze
Recommended Door Type
Aluminum, Hollow Metal
Top Rail Depth (Inches)
5/8
Replacement Parts
20106313, 20117313, DCU4DUS, 201134LC313
Spindle Length (Inches)
1/2
Body Length
11-5/8
Spindle
1/2
Top Rail Depth
5/8
Product Overview

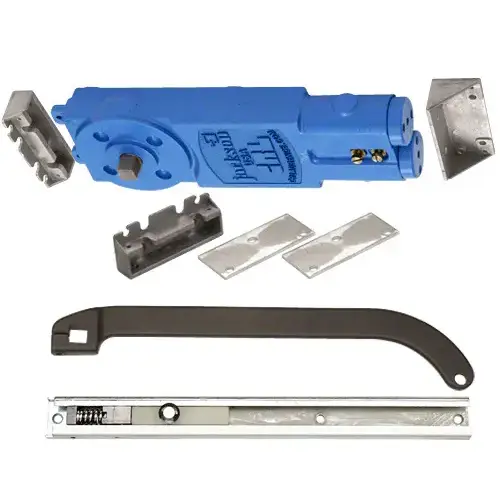

The CRL Jackson® 21201 Series Overhead Concealed Closer with "P" Offset Slide-Arm Hardware Package consists of a Spring Power Adjustable Closer mechanism, which depending on the selected spring size and closer function, is suitable for a range of doors from 30" to 42" (762 mm to 1.07 m) wide. The Closer is packaged complete with Cat. No. 20118 Mounting Clips, 201133 Offset Arm Package, 201129 Slide Channel, and complete installation instructions. The Closer has dual independent valves for closing and latching speeds. 105 No Hold Open with fixed adjustable sping power multi size. Door Closers fit into standard 1-3/4" x 4" (or larger) header extrusions.
