Jackson 21201A462820 Aluminum Adjustable Spring Power Multi-Size 90 Degree Hold-Open Overhead Concealed Closer with "A4" Offset Slide-Arm Hardware Package
Item #: 21201A462820 by Jackson
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- "A4" Offset Slide-Arm Hardware Package for Doors with 5/8" (15.8 mm) Shallow Top Rails
- Adjustable Spring Power Multi-Size Closer
- Five Year Limited Warranty U.L. Listed
- Suitable for Doors from 30" to 48" (762 to 1219 mm) Wide
Shipping Weight
11 lb (4.99kg)
Color
Aluminum
Brand
Jackson
Mounting Type
Concealed In Frame Mount
Grade
ANSI/BHMA Grade 1
For Use With
Aluminum, Wood or Hollow Metal Doors and Frames
Hand
Non-Handed
Handing
Non-Handed
Warranty
5 year limited
Color Code
628/US28
Spring Size
Adjustable
Function
Closer Complete Arm
Maximum Door Weight
250 lbs.
Finish Description
Satin Aluminum
Product Height
1-1/2 Inch
Product Length
11-5/8 Inch
Product Width
3-11/16 Inch
ADA Compliant
YES
Finish Family
Aluminum
Included Components
Closer Body; Mounting Brackets; Offset Arm Package; Slide Channel Assembly
Spindle Size
1/2 Inch
Standards
cUL Listed
Closer Arm Type
Offset Arm
Hold-Open Type
90° Hold Open
Function Family
Hold Open Door Closer
For Door Width
42" (Interior); 36" (Exterior)
Closer Action
Single or Double Acting
Features
Dual Valve Closing Control Both Sweep and Latch Speeds are Adjustable; Provides Cushion Stop to Protect Both the Closer and Opening From Damage
Product Type
Door Closer/Holder/Stop
Series
21 Closer Package
Package Features
Double Acting
Manufacturer Parent
CRH
Sub-Series
21-201A4-628-20
Product Overview

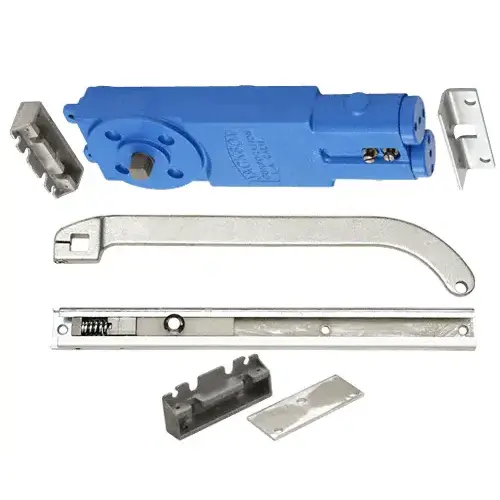

The CRL Jackson® 21201 Series Adjustable Spring Power Overhead Concealed Closer with "A4" Offset Slide-Arm Hardware Package consists of a Closer mechanism, which depending on the selected spring size and function, is suitable for a range of doors from 30" to 48" (762 to 1219 mm) wide. The Closer is packaged complete with Cat. No. 20951 Mounting Clips, Cat. No. 201149 Offset Arm Package, Cat. No. 201129 Slide Channel, and complete installation instructions. The closer has dual independent valves for closing operation (one valve for closing, one valve for latching). 90 and 105 degree, hold-open and non hold-open models are available. Closers fit into standard 1-3/4" x 4" (44.5 x 101.6 mm), or larger, header extrusions.
