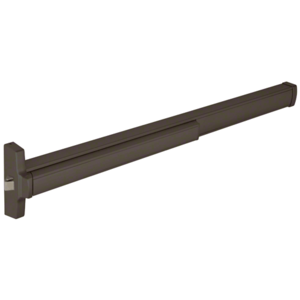

Jackson  Dark Bronze Anodized Model 2095E Electric Rim Latch Retraction Panic Exit Device with 'C' Strike - Fits 36" to 48" Wide Door
Qty
+
$1,194.13   /each

Jackson 312095EC4313 Dark Bronze Anodized Model 2095E Electric Rim Latch Retraction Panic Exit Device with 'C' Strike - Fits 36" to 48" Wide Door

  • UL Listed - 156.3 Grade 1 Device
  • Motorized* Latch Retraction
  • 3/4" (19 mm) Throw Deadlocking Rim Latchbolt
  • Solenoid Operated Latch Retraction
  • Electronic Dogging
  • UL Listed - Certified ANSI 156.3 Grade 1 Device
  • Use with Narrow, Medium, and Wide Stile Aluminum Doors, as Well as Wood and Hollow Metal Doors
See Full Product Description
SALE

$1,194.13 /each

Qty

In stock
Special Order

Usually ships in 1-2 weeks*

SALE
+
In stock Special Order

Usually ships in 1-2 weeks*

Have a Question?

Chat with our Expert


Description

  • UL Listed - 156.3 Grade 1 Device
  • Motorized* Latch Retraction
  • 3/4" (19 mm) Throw Deadlocking Rim Latchbolt
  • Solenoid Operated Latch Retraction
  • Electronic Dogging
  • UL Listed - Certified ANSI 156.3 Grade 1 Device
  • Use with Narrow, Medium, and Wide Stile Aluminum Doors, as Well as Wood and Hollow Metal Doors

  • Product Description
  • Technical Details 6
  • Product Reviews 1
  • Product Q&A 1
  • Large Order Quote
  • Shipping / Return Policy

Product Description

Brand

Jackson

Handing

Non Handed

Size

48" (1.22 m)

Type

Electric Rim Latch Retraction Panic Exit Device with 'C' Strike

Minimum Order

1 Each

Finish

Dark Bronze Anodized

Strike Type

C

  • UL Listed - 156.3 Grade 1 Device
  • Motorized* Latch Retraction
  • 3/4" (19 mm) Throw Deadlocking Rim Latchbolt
  • Solenoid Operated Latch Retraction
  • Electronic Dogging
  • UL Listed - Certified ANSI 156.3 Grade 1 Device
  • Use with Narrow, Medium, and Wide Stile Aluminum Doors, as Well as Wood and Hollow Metal Doors
CRL Jackson® Model 2095E Electric Rim Latch Retraction Panic Devices are UL Listed, and manufactured in the Jackson® tradition of high quality and durability. They are suitable for use with narrow, medium, and wide stile aluminum doors, as well as wood and hollow metal doors. These devices are non-handed, and feature a 3/4" (19 mm) throw deadlocking latch bolt, "Soft Touch" smooth quiet action push pad, quick and easy installation, and electronic motorized* latch retraction and dogging (no manual dogging unless ordered with optional cylinder dogging, which uses a 1-1/8" Mortise Cylinder such as Cat. No. DC7185SCKADU (sold separately). Available in Dark Bronze and Satin Aluminum anodized finishes, this device comes standard with a Cat. No. 302436628 Type 'C' Strike, and may be ordered with optional Cat. No. 302501628 Type 'S' Strike. Keyed entry may be provided by ordering and installing a standard Rim Cylinder such as Cat. No. DL911SCKDDU, or a Jackson® Outside Lever Trim Model 9500LV using a 1" Mortise Cylinder (sold separately). For wood door application order optional Cat. No. 302521 Wood Door Mounting Kit. For double doors, use with a Jackson® Mullion such as Cat. No. 3089620958313.
SPECIFICATIONS:
  • Ships Standard for 48" (1.22 m) Wide Door
  • Field Sizeable for Use Down to 36" (914 mm) Wide Doors
  • Wear Points Insulated by Nylon Sleeves and Rollers
  • Adjusts for Brief or Extended Unlock Mode
    24V DC Input
  • Solenoid Operated: Requires 10 Amp Inrush Power Supply; Jackson® Cat. No. 302616 Power Supply Recommended
  • Motorized: Requires 24VDC Filtered and Regulated Power Supply; Jackson® Cat. No. 301420 Power Supply Recommended
    2095E RIM DEVICE:
  • Requires Rim Cylinder for Keyed Entry
  • Cylinder Mounting Pad Not Required
  • 3/4" (19 mm) Throw Deadlocking Latch
    MATERIALS:
  • Body and Push Pad: Extruded Aluminum
  • Mechanical Components: Stainless and Hardened Plated Steel
  • Latch and Strikes: Sintered Steel
  • Important Notes: Panics produced after 08/15/2016 feature motorized latch retraction and Cat. No. 301420 Power Supply is recommended.
