CRL Jackson® Exit Devices are universally recognized as the standard for aluminum storefront hardware. The CRL Jackson® 8500 Series Electric Outside Lever Trim is for use with Jackson 2086, 2085, 1285 and 1085 concealed vertical rod panic exit devices. It provides for electronic locking and unlocking of the lever, when used with an access control system keypad, card reader etc. Additionally, it provides key controlled night latch function access. Its rugged simplicity belies its versatility: It is non-handed, field reversible, comes as either round - 01 or flat 02 lever styles, and uses a standard 1" mortise cylinder with MS type cam such as DL2170SCKDDU. To order as matching non-electric Standard Lever Trim and as Dummy Trim contact our Technical Sales Department.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

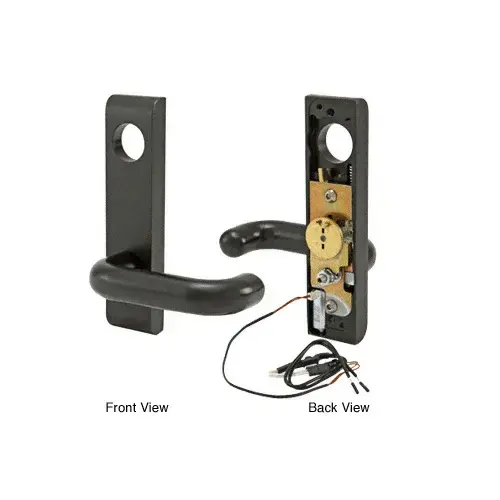

Jackson 8500EL012313 Electric Outside Lever Trim for 2" Thick Doors with Round Style Lever Dark Bronze Finish 24 Volt DC
Item #: 8500EL012313 by Jackson
Item Discontinued!See reviewsSee reviews
The item is currently out of stock and it may or may not be restocked
OUT OF STOCK
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- For Use With Jackson CVR Panic Models 1085, 1285, 2085, and 2086
- For 2" Thick Doors
- 1-3/4" Wide for Narrow Stile Doors. Also Suitable for Medium and Wide Stile Aluminum and Hollow Metal Doors
- Uses Standard 1" Mortise Cylinder with MS Type CAM
- High Tensile Strength Aluminum Escutcheon and Lever
- Non-Handed Field Reversible
Type
Outside Lever Unlocks
Size
1-3/4"
Brand
Jackson
Finish
Dark Bronze
Style
Round
Input
24V DC
Handing
Non Handed, Field Reversible
Function
Electric And Key Controled
Door Thickness
2
UL Listed
Yes
Category
Lever Trim
Door Type
Narrow, Medium, Wide Stile Aluminum, Wood Or Hollow Metal Doors
Finish/Color
Dark Bronze
Series
8500EL
Current Rush Required
0.25 Amps
Trim Handle Style
Round
Solenoid
Yes
Cylinder Required
DL2170SCKDA, DL2170YK8DA,
Continuous Holding
0.30 Amps
Door Size Thickness
2
Night Latch
Yes
CAM Type
AR MS
Material
Aluminum
Product Overview
CRL Jackson® Exit Devices are universally recognized as the standard for aluminum storefront hardware. The CRL Jackson® 8500 Series Electric Outside Lever Trim is for use with Jackson 2086, 2085, 1285 and 1085 concealed vertical rod panic exit devices. It provides for electronic locking and unlocking of the lever, when used with an access control system keypad, card reader etc. Additionally, it provides key controlled night latch function access. Its rugged simplicity belies its versatility: It is non-handed, field reversible, comes as either round - 01 or flat 02 lever styles, and uses a standard 1" mortise cylinder with MS type cam such as DL2170SCKDDU. To order as matching non-electric Standard Lever Trim and as Dummy Trim contact our Technical Sales Department.
