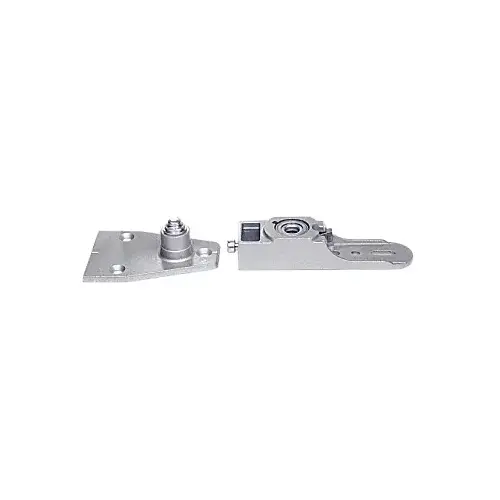

Jackson 20902 G Type Side Load Floor Mount Bottom Pivot Set

Item #: 20902 by Jackson

See reviewsSee reviews
See reviews summary
In Stock

$40.85

/each
SAVE UP TO 4.08
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 229 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • SECURE PIVOT SUPPORT: Provides stable and firm attachment for bottom pivots in concealed closer applications.
  • STRONG BUILD: Designed for doors weighing up to 125 lbs, ensuring durability and smooth operation.
  • HEIGHT ADJUSTMENT: Features a 3/16" adjustable height for precise door alignment and balanced movement.
  • FLOOR MOUNT DESIGN: Specially designed for floor mounting, offering a secure and stable pivot system.
  • COMPATIBLE WITH 1 1/2" DEEP RAILS: Designed to fit doors with a 1 1/2" deep bottom rail for secure attachment.
  • SMOOTH DOOR MOVEMENT: Minimizes resistance and friction, allowing doors to operate effortlessly.
  • LONG-LASTING PERFORMANCE: Built to withstand continuous use, ensuring reliable door functionality.
  • COMMERCIAL-GRADE HARDWARE: Ideal for commercial and high-traffic applications requiring durable pivot support.
  • EASY TO INSTALL: Designed for quick and efficient setup with minimal effort, ensuring a hassle-free installation.

Use With

1 1/2" Deep Bottom Door Rail

Type

Side Load Arm

Maximum Door Weight

125 lbs.

Height Adjustment

3/16"

Product Overview
CRL Jackson® Bottom Pivot Set for use with 1-1/2" (38.1 mm) Deep Bottom Door Rail for Side-Load Applications is designed for use with Side-Load Center-Hung Applications. Similar to the CRL81010G, this pivot allows for 3/16" (5 mm) height adjustment with the door installed through an adjustment hole in the end of the door. Minimum order is one each. NOTE: Recommended Maximum Weight Capacity: 125 lbs. (56.7 kg). DS 07/25/2016

From Manufacturer

The G-Type Side-Load Floor Mount Bottom Pivot Set provides secure fastening for doors weighing up to 125 lbs. With a 3/16" height adjustment, it ensures smooth and stable operation. Designed for doors with a 1 1/2" deep bottom rail, this heavy-duty pivot hinge enhances door closer functionality. Its robust construction offers long-lasting durability, making it an ideal choice for commercial concealed closer installations.
