This CRL Jackson "GW" Type End-Load Floor Mount Bottom Pivot Set mounts directly to the floor, and is intended for use with End-Load applications. A 3/16" (5 mm) height adjustment is possible with the door installed. Height from bottom of plate to top of the pivot when installed is 1-1/4" (31.8 mm).
Recommended Maximum Weight Capacity: 125 lbs. (56.7 kg).
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

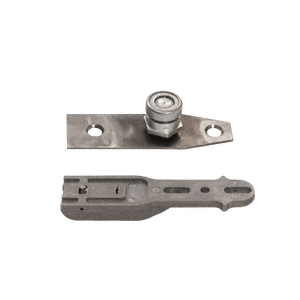

Jackson 201570 "GW" Type End-Load Floor Mount Bottom Pivot Set
Item #: 201570 by Jackson
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Designed for Use with Aluminum or Properly Prepared Wood and Hollow Metal Doors
- For Floor Mount Installations
- For Use with 1" (25 mm) Deep Bottom Rail in End-Load Applications
Brand
Jackson
Overall Height
1-1/4"
Warranty
1 Year From Date of Purchase.
ProductType
Manual
Handing
Non Handed
Pivot Type
Center Hung
Recommended Door Type
Aluminum, Wood, Hollow Metal
Application
End-Load Applications
Function
Bottom Pivot
Fire Rated
No
ADA Compliant
No
Function Family
Hinge/Pivot
Vertical Adjustment
3/16 Inch
Features
"GW" Type Floor Mount
Product Type
Hinge/Pivot
Series
20 Series
Manufacturer Parent
CRH
Sub-Series
20-1570
Product Overview
CRL Jackson® "GW" Type End-Load Floor Mount Bottom Pivot Set is specially designed for floor mount installations and is intended for use with End-Load applications. It works best for Aluminum or Properly Prepared Wood and Hollow Metal Doors. A 3/16" (5 mm) height adjustment is possible with the door installed. Recommended Maximum Weight Capacity: 125 lbs. (56.7 kg). DS 06/27/2016
From Manufacturer
This CRL Jackson "GW" Type End-Load Floor Mount Bottom Pivot Set mounts directly to the floor, and is intended for use with End-Load applications. A 3/16" (5 mm) height adjustment is possible with the door installed. Height from bottom of plate to top of the pivot when installed is 1-1/4" (31.8 mm).
Recommended Maximum Weight Capacity: 125 lbs. (56.7 kg).
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
