Light Duty Spring 105 degree No Hold Open Overhead Concealed Closer With "S" Side-Load Hardware Package

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Jackson 21101S05 Light Duty Spring 105 degree No Hold Open Overhead Concealed Closer With "S" Side-Load Hardware Package

Item #: 21101S05 by Jackson

1 1 reviews

In Stock $291.69 /each

SAVE UP TO 29.17

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
  • "S" Center-Hung, Side-Load Hardware Package For Doors with 1/2" Deep Top Rails
  • Suitable for Doors From 30" to 48" (762 mm to 1.22 m) Wide
  • Ten Year Limited Warranty U.L. Listed

Length

11-5/8" (295 mm)

Width

3-11/16" (94 mm)

Brand

Jackson

Type

105º No Hold Open

Body Length

11-5/8 in. (295.3 mm)

Body Height

1-11/16 in. (43 mm)

Body Width

3-11/16 in. (94 mm)

Material

Aluminum

Handing

Double Acting

Spindle

1/2 in. (12 mm)

Spring Size

Light Duty

No Hold Open

105°

Maximum Door Weight

250 lbs. (113.4 kg)

UL Listed

Yes

Arm Type

Side Load

Closer Type

Overhead Concealed

Recommended Door Type

Aluminum, Hollow Metal

Bottom Pivot Type

Threshold Mount Pivot

Bottom Door Rail Depth

1 in. (25.4 mm)

Bottom Door Clearance Adjustment

1 in. (25.4 mm)

Top Rail Depth

1 in. (25.4 mm)

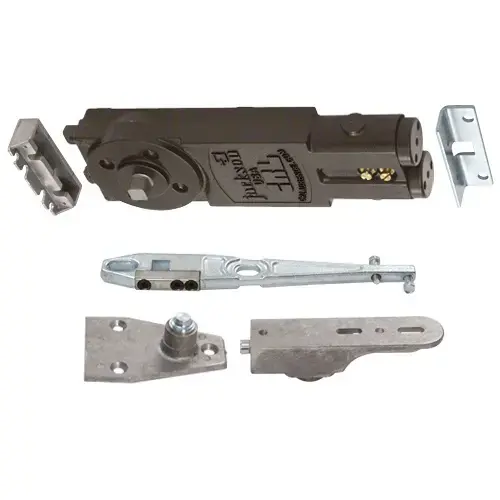

The CRL Jackson® 21101 Series Overhead Concealed Closer with "S" Side-Load Hardware Package consists of a Closer mechanism, which depending on the selected spring size and function, is suitable for a range of doors from 30" to 48" (762 mm to 1.22 m) wide. The Closer is packaged complete with Cat. No. 20219 Mounting Clips, 20400B Side-Load Arm, Type "G" 20902 Bottom Pivot Set for floor mounting, and complete installation instructions. The Closer has dual independent valves for closing operation (one valve for closing, one valve for latching). 90º and 105º, Hold Open and No Hold Open models are available. Closers fit into standard 1-3/4" x 4" (or larger) header extrusions.
