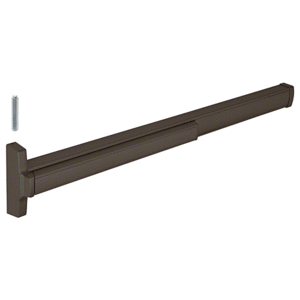

Jackson 3120861L47313 Model 2086 with Impact Kit Concealed Vertical Rod Panic Exit Device Left Hand Reverse Bevel Fits 32" to 48" Wide x 84" Tall Door Dark Bronze Finish
Item #: 3120861L47313 by Jackson
In Stock $283.74 /each
Buying in bulk
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Durable, ANSI 156.3 Grade 1 Tested to Over 500,000 Cycles
- Easy Concealed Push-Button Dogging Standard. Cylinder Dogging, and Front Hex Key Dogging Available
- Impact Kit Included with This Device
- Use with Narrow, Medium and Wide Stile Aluminum Doors
Brand
Jackson
Size
48" (1.22 m)
Type
Concealed Vertical Rod Impact with Top Bolt
Handing
Left Hand Reverse Bevel (LHR)
Finish
Dark Bronze
Handed
Left
Door Height
84
Certification
ANSI/BHMA 156.3
Finish/Color
Dark Bronze
Panic Bar Width Net
46.5
Push Pad Width
23.5
Impact Panic Hurricane Resistant
Yes
Material - Mechanical Components
Stainless and Hardened Plated Steel
Recommended Door Type
Aluminum Narrow,Medium,Wide Stile,Hollow Metal
Minimum Stile Width (Inches)
1-3/4
Tall Door Extention Rods
301347301348
Material - Housing
Aluminum
Panic Bar Base Height (Inches)
2-7/8
Panic Type
Concealed Vertical Rods Top Bolt
Replacement Parts
301266313,301265313,302467,301084313,30763P,301552,30824313,308621J313,DL2170SCKDDU,302989313
Material - End Cap
Aluminum
Material - Latch & Strike
Sintered Steel
Panic Head Height (Inches)
7-5/16
Panic Bar Projection (Inches)
3
Panic Dogging
Push Button
Model
2086
Door Thickness
1-3/4
Door Width
48
UL Listed
Yes
Includes
Mounting Hardware
CRL Jackson® Model 20861 with Impact Kit Concealed Vertical Rod Panic Exit Devices are UL Listed - Certified ANSI 156.3 Grade 1, and manufactured in the Jackson® tradition of high quality and durability. This device with the Impact Kit has been used in a number of OEM Certified Impact Systems. Suitable for use with narrow, medium and wide stile aluminum doors, these devices are handed - not reversible, and feature dual point hex bolt latching, concealed easy-to-use push button dogging, "Soft Touch" smooth quiet action push pad, and quick and easy installation. They are available in Dark Bronze and Satin Aluminum anodized finishes. Standard devices come in two lengths for 36" and 48" wide doors, and can be cut down to custom fit an opening (consult CRL Jackson® Technical Sales). For doors over 84" order Top Rod Extender: 12" – 301347 or 24" – 301348. Devices may be ordered with optional Cylinder Dogging, which uses a 1-1/8" Mortise Cylinder such as DC7185SCKADU, ordered separately. Keyed entry may be provided by ordering and installing a standard 1" Mortise Cylinder such as DL2170SCKDDU with AR MS type cam, along with a Cylinder Mounting Pad such as 30821J313. Keyed access is also available with Jackson® Model 8500LV Outside Lever Trim such as 8500LV02313.
.
