CRL Jackson Model 2086 with Impact Kit Concealed Vertical Rod Panic Exit Devices are UL Listed - Certified ANSI 156.3 Grade 1, and manufactured in the Jackson tradition of high quality and durability. This device with the Impact Kit has been used in a number of OEM Certified Impact systems. Suitable for use with narrow, medium and wide stile aluminum doors, these devices are handed - not reversible, and feature dual point hex bolt latching, concealed easy-to-use push button dogging, "Soft Touch" smooth quiet action push pad, and quick and easy installation. They are available in Dark Bronze and Satin Aluminum anodized finishes. Standard devices come in two lengths for 36" and 48" wide doors, and can be cut down to custom fit an opening (consult CRL Jackson Technical Sales Department). For doors over 84" order Top Rod Extender: 12" - 301347 or 24" - 301348. Devices may be ordered with optional Cylinder Dogging, which uses a 1-1/8" Mortise Cylinder such as DC7185SCKADU, ordered separately. Keyed entry may be provided by ordering and installing a standard 1" Mortise Cylinder such as DL2170SCKDA with AR MS type cam, along with a Cylinder Mounting Pad such as 30821J628. Keyed access is also available with Jackson Model 8500LV Outside Lever Trim such as 8500LV02628.
REPLACEMENT PARTS:301266628 301265628 302462 301084628 30763P 301552 30824628 301311PKG 308621J628 DL2170SCKDA 302989628
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

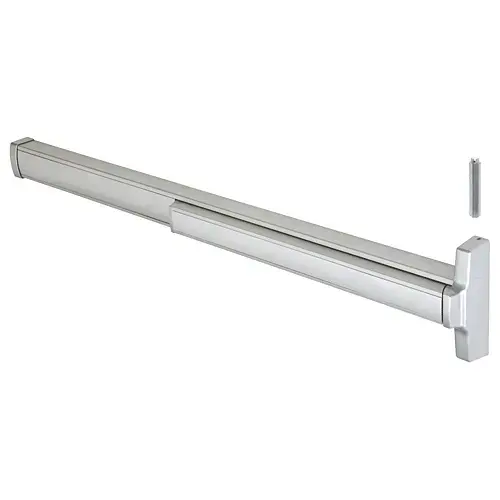

Jackson 3120861R47628 Model 2086 with Impact Kit Concealed Vertical Rod Panic Exit Device Right Hand Reverse Bevel Fits 4/0 x 7/0 Door Aluminum Finish
Item #: 3120861R47628 by Jackson
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Durable, ANSI 156.3 Grade 1 Tested to Over 500,000 Cycles
- Easy Concealed Push-Button Dogging Standard. Cylinder Dogging, and Front Hex Key Dogging Available
- Includes Impact Kit
- Remarkably Quiet, Smooth, Reliable Operation
- Use with Narrow, Medium and Wide Stile Aluminum Doors
Size
48" (1.22 m)
Brand
Jackson
Finish
Aluminum
Handed
Right
Door Height
84
Certification
ANSI/BHMA 156.3
Finish/Color
Aluminum
Series
20
Panic Bar Width Net
46.5
Push Pad Width
23.5
Impact Panic Hurricane Resistant
Yes
Material - Mechanical Components
Stainless and Hardened Plated Steel
Recommended Door Type
Aluminum Narrow,Medium,Wide Stile,Hollow Metal
Minimum Stile Width (Inches)
1-3/4
Tall Door Extention Rods
301347301348
Material - Housing
Aluminum
Panic Bar Base Height (Inches)
2-7/8
Panic Type
Concealed Vertical Rods Top Bolt
Replacement Parts
301266628,301265628,302462,301084628,30763P,301552,30824628,308621J628,DL2170SCKDA,302989628
Material - End Cap
Aluminum
Material - Latch & Strike
Sintered Steel
Panic Head Height (Inches)
7-5/16
Panic Bar Projection (Inches)
3
Panic Dogging
Push Button
Handing
Right Hand Reverse Bevel (RHR)
Model
2086
Door Thickness
1-3/4
Door Width
48
UL Listed
Yes
Includes
Mounting Hardware
Minimum Stile Width
1-3/4 in. (44.5 mm)
Panic Bar Base Height
2-7/8 in. (73 mm)
Panic Head Height
7-5/16 in. (185.7 mm)
Panic Bar Projection
3 in. (76.2 mm)
Product Overview
CRL Jackson Model 2086 with Impact Kit Concealed Vertical Rod Panic Exit Devices are UL Listed - Certified ANSI 156.3 Grade 1, and manufactured in the Jackson tradition of high quality and durability. This device with the Impact Kit has been used in a number of OEM Certified Impact systems. Suitable for use with narrow, medium and wide stile aluminum doors, these devices are handed - not reversible, and feature dual point hex bolt latching, concealed easy-to-use push button dogging, "Soft Touch" smooth quiet action push pad, and quick and easy installation. They are available in Dark Bronze and Satin Aluminum anodized finishes. Standard devices come in two lengths for 36" and 48" wide doors, and can be cut down to custom fit an opening (consult CRL Jackson Technical Sales Department). For doors over 84" order Top Rod Extender: 12" - 301347 or 24" - 301348. Devices may be ordered with optional Cylinder Dogging, which uses a 1-1/8" Mortise Cylinder such as DC7185SCKADU, ordered separately. Keyed entry may be provided by ordering and installing a standard 1" Mortise Cylinder such as DL2170SCKDA with AR MS type cam, along with a Cylinder Mounting Pad such as 30821J628. Keyed access is also available with Jackson Model 8500LV Outside Lever Trim such as 8500LV02628.
REPLACEMENT PARTS:
