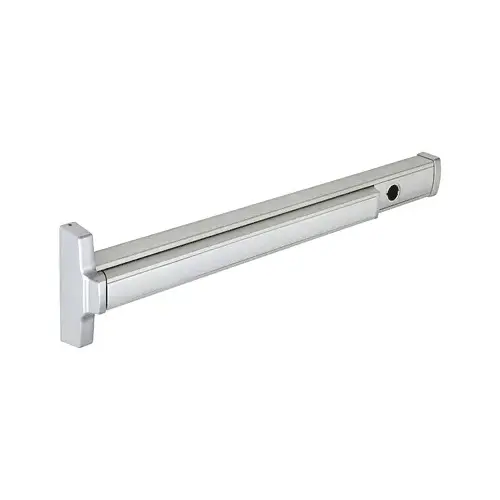

Jackson  Model 2086C Cylinder Dogging Concealed Vertical Rod Panic Exit Device Left Hand Reverse Bevel Fits 3/0 x 7/0 Door Aluminum Finish
Qty
+
$594.45   /each

Jackson 312086CL37628 Model 2086C Cylinder Dogging Concealed Vertical Rod Panic Exit Device Left Hand Reverse Bevel Fits 3/0 x 7/0 Door Aluminum Finish

  • Cylinder Dogging Feature (Key Cylinder Sold Separately)
  • Durable, ANSI 156.3 Grade 1 Tested to Over 500,000 Cycles
  • No "Pinch Points" and Low Projection for Barrier-Free Compliance
  • Remarkably Quiet, Smooth, Reliable Operation
  • Use with Narrow, Medium and Wide Stile Aluminum Doors
See Full Product Description
SALE

$594.45 /each

Qty

In stock
Special Order

Usually ships in 1-2 weeks*

SALE
+
In stock Special Order

Usually ships in 1-2 weeks*

Have a Question?

Chat with our Expert


Description

  • Cylinder Dogging Feature (Key Cylinder Sold Separately)
  • Durable, ANSI 156.3 Grade 1 Tested to Over 500,000 Cycles
  • No "Pinch Points" and Low Projection for Barrier-Free Compliance
  • Remarkably Quiet, Smooth, Reliable Operation
  • Use with Narrow, Medium and Wide Stile Aluminum Doors

  • Product Description
  • Technical Details 3
  • Product Reviews 1
  • Product Q&A 1
  • Large Order Quote
  • Shipping / Return Policy

Product Description

Shipping Weight

12 lb (5.44kg)

Minimum Order

1 Each

Brand

Jackson

Size

36" (914 mm)

Finish

Aluminum

Handed

Left

  • Cylinder Dogging Feature (Key Cylinder Sold Separately)
  • Durable, ANSI 156.3 Grade 1 Tested to Over 500,000 Cycles
  • No "Pinch Points" and Low Projection for Barrier-Free Compliance
  • Remarkably Quiet, Smooth, Reliable Operation
  • Use with Narrow, Medium and Wide Stile Aluminum Doors
CRL Jackson® Model 2086 Concealed Vertical Rod Panic Exit Devices are UL Listed - Certified ANSI 156.3 Grade 1, and manufactured in the Jackson® tradition of high quality and durability. Suitable for use with narrow, medium and wide stile aluminum doors, these devices are handed - not reversible, and feature dual point hex bolt latching, concealed easy-to-use push button dogging, "Soft Touch" smooth quiet action push pad, and quick and easy installation. They are available in Dark Bronze and Satin Aluminum anodized finishes. Standard devices come in two lengths for 36" and 48" wide doors, and can be cut down to custom fit an opening (consult CRL Jackson® Technical Sales). For doors over 84" order Top Rod Extender: 12" – 301347 or 24" – 301348. Devices may be ordered with optional Cylinder Dogging, which uses a 1-1/8" Mortise Cylinder such as DC7185SCKASC, ordered separately. Keyed entry may be provided by ordering and installing a standard 1" Mortise Cylinder such as DL2170SCKDA with AR MS type cam, along with a Cylinder Mounting Pad such as 30821J628. Keyed access is also available with Jackson® Model 8500LV Outside Lever Trim such as 8500LV02628.
