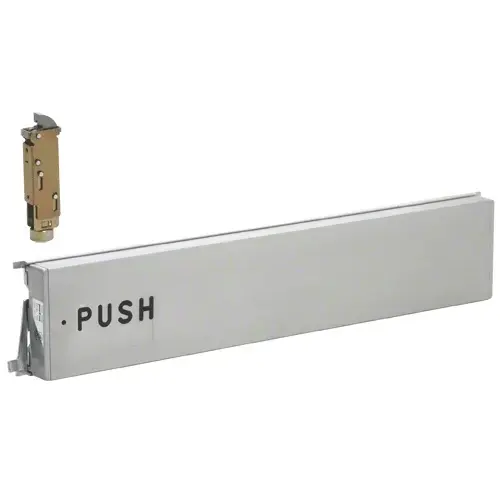

Model 3185 Mid-Panel Concealed Vertical Rod Exit Device with Top Latch "PUSH" Engraved on Push Pad Aluminum Finish Left Hand Reverse Bevel

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Jackson 313185BPL7628 Model 3185 Mid-Panel Concealed Vertical Rod Exit Device with Top Latch "PUSH" Engraved on Push Pad Aluminum Finish Left Hand Reverse Bevel

Item #: 313185BPL7628 by Jackson

See reviews See reviews
The item is currently out of stock and it may or may not be restocked
OUT OF STOCK

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
  • Suitable for Use With Narrow, Medium, and Wide Stile Doors
  • Non-Protruding Push Pad
  • Concealed Vertical Rods
  • Top Latch and Top Bolt Models Available
  • Satin Aluminum and Dark Bronze Finishes

Shipping Weight

11 lb (4.99kg)

Brand

Jackson

Finish

Aluminum

Handed

Left

CRL Jackson® 3100 Series Mid-Panel Exit Devices are designed as a non-protruding push-pad exit device providing maximum clearance while maintaining an aesthetically pleasing look. Developed in the Jackson® tradition of high quality and durability, this exit device is suitable for use with narrow, medium and wide stile aluminum doors. These devices are handed - not reversible, and provide "dual dogging" allowing the device to be dogged open by either the outside cylinder or by the standard hex key dogging feature. An Installation Mid-Panel Kit is available (sold separately). For doors over 7' tall use 12" Top Rod Extender #301347 or 24" Top Rod Extender #301348. Cylinder mounting pad 30821Bxxx required for installation of a 1" mortise key cylinder such as DL2170SCKDDU.
SPECIFICATIONS:
  • For Use With Minimum 1-3/4" (44 mm) Narrow, Medium, and Wide Stile Aluminum Doors
  • Concealed Easy-to-Use Hex Key Dogging or by Outside Cylinder
  • Wear Points Insulated by Nylon Sleeves and Rollers
  • Available With Either an Engraved "Arrow" or "Push"
    3185 Concealed Vertical Rod Device - Top Latch
  • Positive Locking, Spring Loaded Top Latch
  • Requires Mortise Cylinder and No. 30821B Mounting Pad for Keyed Entry
    MATERIALS:
  • Body and Push Pad: Extruded Aluminum
  • Mechanical Components: Stainless and Hardened Plated Steel
  • Latch and Strikes: Sintered Steel
