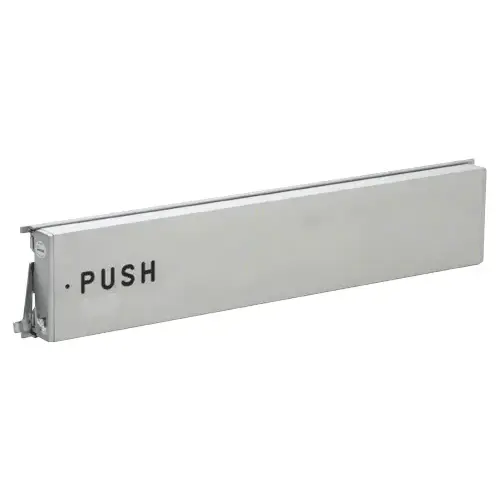

Model 3186 Mid-Panel Concealed Vertical Rod Exit Device Aluminum Finish Left Hand Reverse Bevel with the Word "PUSH" Engraved on Push Pad

Roll over image to zoom in

Jackson 313186PL7628 Model 3186 Mid-Panel Concealed Vertical Rod Exit Device Aluminum Finish Left Hand Reverse Bevel with the Word "PUSH" Engraved on Push Pad

Item #: 313186PL7628 by Jackson

See reviews See reviews
The item is currently out of stock and it may or may not be restocked
OUT OF STOCK

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

  • Concealed Vertical Rods
  • Hex Bolts Used at Both Top and Bottom Latch Points
  • Non-Protruding Push Pad
  • Push Pad is identified by the Word "PUSH" Engraved On It
  • Suitable for use with Narrow, Medium and Wide Stile Doors

Shipping Weight

11 lb (4.99kg)

Brand

Jackson

Finish

Aluminum

Handed

Left

CRL Jackson® 3100 Series Mid-Panel Exit Devices are designed as a non-protruding push-pad exit device providing maximum clearance while maintaining an aesthetically pleasing look. Developed in the Jackson® tradition of high quality and durability, this exit device is suitable for use with narrow, medium and wide stile aluminum doors. These devices are handed - not reversible, and provide "dual dogging" allowing the device to be dogged open by either the outside cylinder or by the standard hex key dogging feature. An Installation Mid-Panel Kit is available (sold separately). For doors over 7' tall use 12" Top Rod Extender #301347 or 24" Top Rod Extender #301348. Cylinder mounting pad 30821Bxxx required for installation of a 1" mortise key cylinder.
