Jackson 21201S62801 Satin Aluminum Regular Duty Spring 105 degree No Hold Open Overhead Concealed Closer With "S" Offset Slide-Arm Hardware Package
Item #: 21201S62801 by Jackson
In Stock $258.30 /each
Buying in bulk
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- "S" Offset Slide-Arm Hardware Package for Doors with 7/8" Shallow Top Rails
- S Offset Slide-Arm Hardware Package for Doors with 7/8" Shallow Top Rails
- Suitable for Doors From 30" to 48" (762 mm to 1.22 m) Wide
- Five Year Limited Warranty U.L. Listed
Length
11-5/8" (295 mm)
Width
3-11/16" (94 mm)
Brand
Jackson
Finish
Aluminum
Type
105º No Hold Open
Body Height
1-11/16
Body Width
3-11/16
Material
Aluminum
Handing
Non-Handed
Spring Size
Regular
No Hold Open
105°
Maximum Door Weight
250
UL Listed
Yes
Includes
20101M01, 201376, 201149628, 201129
Arm Type
"S" Offset Slide
Closer Type
Overhead Concealed
Finish/Color
Aluminum
Recommended Door Type
Aluminum, Hollow Metal
Top Rail Depth (Inches)
7/8
Similar
21201P62817, 21201U31301
Closer Package
Yes
Replacement Parts
20106628, 20190628, DCH4SAS, 201134LC628
Spindle Length (Inches)
1/2
Body Length
11-5/8
Spindle
1/2
Top Rail Depth
7/8

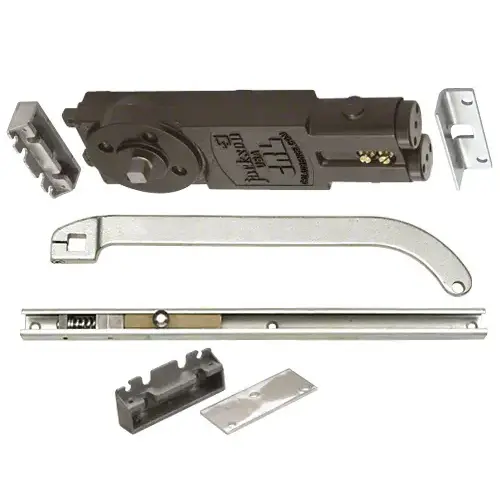

The CRL Jackson® 21201 Series Overhead Concealed Closer with "S" Offset Slide-Arm Hardware Package consists of a Closer mechanism, which depending on the selected spring size and function, is suitable for a range of doors from 30" to 48" (762 mm to 1.22 m) wide. The Closer is packaged complete with Cat. No. 20951 Mounting Clips, 20942 Offset Arm Package, 20368 Slide Channel, and complete installation instructions. The Closer has dual independent valves for closing and latching speeds. 105º No Hold Open with fixed regular duty spring size. Door Closers fit into standard 1-3/4" x 4" (or larger) header extrusions.
.
