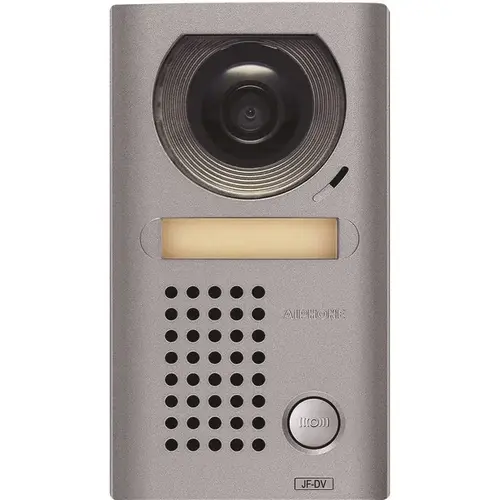

Aiphone JF-DV JF Series Surface Mount 1-Channel Color Video Door Station Intercom with Vandal, Weather Resistant, Zinc Gray
Item #: JF-DV by Aiphone Co., Ltd
UPC #: 840067651230
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Power Source: 18V DC - Use PS-1820UL
- Calling: Chime, image and audio approx. 45 sec.
- Communication: AUTOMATIC (hands-free) - to activate, momentarily push TALK button MANUAL (push-to-talk/release-to-listen) - to activate, push TALK button for 2 sec. or until talk LED turns on
- Video Monitor: 3-1/2" direct-view TFT color LCD
- Scanning Line: 525 lines
- Night Viewing: Up to 1’ from camera, with white LED projected, background beyond 1’ cannot be seen
- Picture memory: Record max. 50 images (8 pictures/image, 1 shot for each sec.) Save max. 10 recorded pictures
- Voice memo: Record max. 3 voice memos (max. approx. 15 sec. /memo)
- Msg. for entrance: Record max. 2 messages (max. approx. 10 sec. /message)
- Door release: Contact rating: 24V AC/DC, 500mA Use RY-18L for larger contact rating
- Wiring: Door to master: 2-cond., mid cap, solid, non-shielded Master to sub: 4-cond., mid cap, solid, non-shielded
- Distance: Door to farthest master/sub master: 165’(22AWG) 330’(18AWG) Master to IER-2: 245’(22AWG) 490’(18AWG)
- Wire Type: Master to door: Aiphone #871802 Between masters/sub: Aiphone #871804
Warranty
1 Year Limited Warranty
Pack Size
1
Certifications and Listings
ISO Certified
Included
No Additional Items Included
Indoor/Outdoor
Indoor
Product Depth (in.)
8.25
Product Height (in.)
2
Product Width (in.)
4.75
Standard Color Family
Gray
UNSPSC
46171610
Reliable security, simple functionality and sophisticated design, you get it all with this affordable video intercom. See, hear and speak to visitors before allowing them inside. The JF Series supports 2 video door stations and 3 interior master stations. With built-in picture memory, the system can automatically record visitor calls or can be activated manually. Installation is quick and easy using just 2 wires. AIPHONE is proud to be a rare, 2-time winner of the prestigious Deming Prize for quality management and manufacturing processes. AIPHONE products routinely last for years, only being replaced when the application outgrows the system capacity.
- Surface mount audio and video intercom station
- For hands-free Video Intercom systems
- JF system scope: 2-door station, 3 inside stations with audio-visual memory system
- 18 VDC voltage
