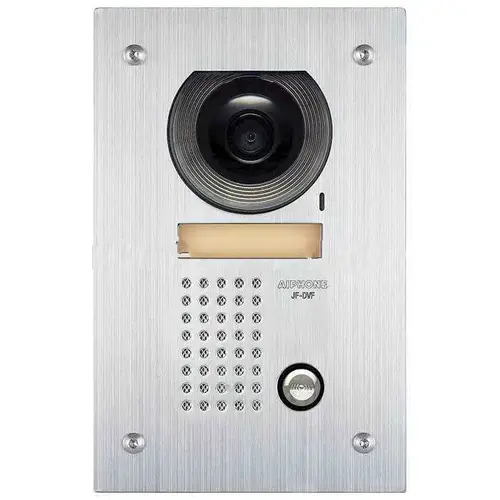

Aiphone JF-DVF JF Series Flush Mount 1-Channel Color Video Door Station Intercom with Weather Resistant, Stainless Steel
Item #: JF-DVF by Aiphone Co., Ltd
UPC #: 840067651247
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Power Source: 18V DC - Use PS-1820UL
- Calling: Chime, image and audio approx. 45 sec.
- Communication: AUTOMATIC (hands-free) - to activate, momentarily push TALK button MANUAL (push-to-talk/release-to-listen) - to activate, push TALK button for 2 sec. or until talk LED turns on
- Video Monitor: 3-1/2" direct-view TFT color LCD
- Scanning Line: 525 lines
- Night Viewing: Up to 1’ from camera, with white LED projected, background beyond 1’ cannot be seen
- Picture memory: Record max. 50 images (8 pictures/image, 1 shot for each sec.) Save max. 10 recorded pictures
- Voice memo: Record max. 3 voice memos (max. approx. 15 sec. /memo)
- Msg. for entrance: Record max. 2 messages (max. approx. 10 sec. /message)
- Door release: Contact rating: 24V AC/DC, 500mA Use RY-18L for larger contact rating
- Wiring: Door to master: 2-cond., mid cap, solid, non-shielded Master to sub: 4-cond., mid cap, solid, non-shielded
- Distance: Door to farthest master/sub master: 165’(22AWG) 330’(18AWG) Master to IER-2: 245’(22AWG) 490’(18AWG)
- Wire Type: Master to door: Aiphone #871802 Between masters/sub: Aiphone #871804
Warranty
1 Year Limited Warranty
Pack Size
1
Certifications and Listings
ISO Certified
Included
No Additional Items Included
Indoor/Outdoor
Indoor
Product Depth (in.)
10
Product Height (in.)
2.75
Product Width (in.)
7.5
Standard Color Family
Stainless Look
UNSPSC
46171610
Product Height
8-1/4 Inch
Product Length
10 Inch
Product Width
5-5/16 Inch
Product Type
Access Control Part/Accessory
Product Depth
7/32 Inch
Manufacturer Parent
Aiphone
Communication Type
Hands-Free
Camera Type
1/4 inch CCD
Sub-Series
JF-DVF
Kit Contents
Camera; Microphone; Directory Card; White LED Illuminators; Speaker; Call Button
Mounting Type
Flush
Operating Temperature
14 to 140°F
Features
Fixed Camera Provides Clear Video; LED Illumination Automatically Turns on in Low Light Conditions; LED Backlit Nameplate
Product Material
Stainless Steel Cover
Camera Area View
2'1" Vertical X 3'1" Horizontal at 20"
- Fixed camera provides clear video
- LED illumination automatically turns on in low light conditions
- LED backlit nameplate
