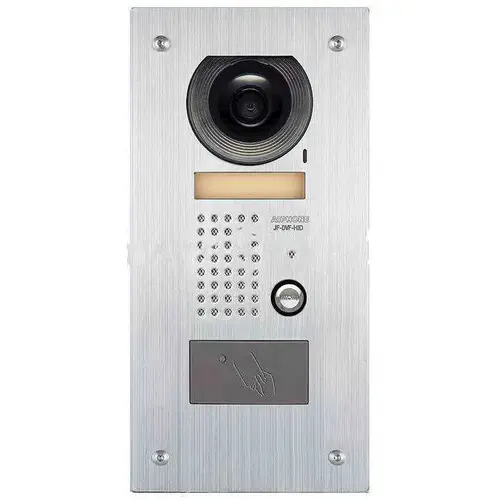

Aiphone JF-DVF-HID JF Fl. Mnt Clr Vndl Dr Stn, SS With Embedded HID Proxpoint Plus Reader

Item #: JF-DVF-HID by Aiphone Co., Ltd

Item Discontinued!
See reviewsSee reviews
See reviews summary

The item is currently out of stock and it may or may not be restocked
OUT OF STOCK

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Power Source: 18V DC - Use PS-1820UL
  • Calling: Chime, image and audio approx. 45 sec.
  • Communication: AUTOMATIC (hands-free) - to activate, momentarily push TALK button MANUAL (push-to-talk/release-to-listen) - to activate, push TALK button for 2 sec. or until talk LED turns on
  • Video Monitor: 3-1/2" direct-view TFT color LCD
  • Scanning Line: 525 lines
  • Night Viewing: Up to 1’ from camera, with white LED projected, background beyond 1’ cannot be seen
  • Picture memory: Record max. 50 images (8 pictures/image, 1 shot for each sec.) Save max. 10 recorded pictures
  • Voice memo: Record max. 3 voice memos (max. approx. 15 sec. /memo)
  • Msg. for entrance: Record max. 2 messages (max. approx. 10 sec. /message)
  • Door release: Contact rating: 24V AC/DC, 500mA Use RY-18L for larger contact rating
  • Wiring: Door to master: 2-cond., mid cap, solid, non-shielded Master to sub: 4-cond., mid cap, solid, non-shielded
  • Distance: Door to farthest master/sub master: 165’(22AWG) 330’(18AWG) Master to IER-2: 245’(22AWG) 490’(18AWG)
  • Wire Type: Master to door: Aiphone #871802 Between masters/sub: Aiphone #871804
Product Overview

JF Fl. Mnt Clr Vndl Dr Stn, SS With Embedded HID¨ Proxpoint¨ Plus Reader

The JF Series hands-free color video enhanced system will support 2 video door stations and 3 inside monitor stations. With built in picture memory, the system can be set to record automatically when a visitor calls or manually by the user at the time of the call-in.

Supports 2 video door stations and 3 inside monitor stations.

JF System has built in picture memory and can be set to record automatically when a visitor calls.
