Ip Video Intercom Set, 1 Door, 1 Master, Up To 10 Pcs

Roll over image to zoom in

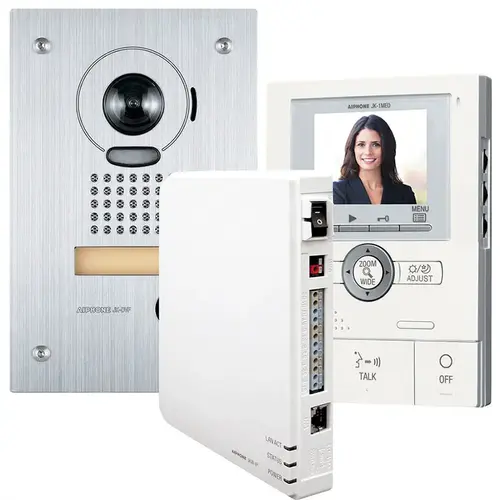

Aiphone JKS-IPEF Ip Video Intercom Set, 1 Door, 1 Master, Up To 10 Pcs

Item #: JKS-IPEF by Aiphone Co., Ltd

See reviewsSee reviews
See reviews summary
HURRY! Low in stock

$1,555.50

/each
SAVE UP TO 155.55

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 1 units available
QTY
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Features
  • Power Source: 18V DC - Use PS-1820UL
  • Calling: Chime, image and audio approx. 45 sec.
  • Communication: AUTOMATIC (hands-free) - to activate, momentarily push TALK button MANUAL (push-to-talk/release-to-listen) - to activate, push TALK button for 1 sec. or until talk LED turns on
  • Video Monitor: 3-1/2” direct-view TFT color LCD
  • Scanning Line: 525 lines
  • Minimum illumination: 5 Lux at 1'-5/8" distance
  • Night Viewing: Up to 1’-5/8" from camera, with white LED projected, background beyond 1'-5/8" cannot be seen
  • Door Release: Contact rating: 24V AC/DC, 500mA Use RY-18L for larger contact rating
  • Wiring: Door to master: 2-cond., mid cap, solid, non-shielded Master to sub: 4-cond., mid cap, solid, non-shielded
  • Distance: Door to farthest master/sub master: 165’(22AWG) 330’(18AWG) Master to IER-2: 245’(22AWG) 490’(18AWG)
  • Wire Type: Master to door: Aiphone #871802 Between masters/sub: Aiphone #871804
Product Overview

Ip Video Intercom Set, 1 Door, 1 Master, Up To 10 Pcs

The JK Series is a PanTilt Zoom, open voice color video intercom system. At 170 degrees, the camera offers nearly twice the viewing width as conventional video intercoms

PanTilt Zoom system with open voice color video.

The camera offers nearly twice the viewing width as conventional video intercoms and has master stations that feature picture memery.
