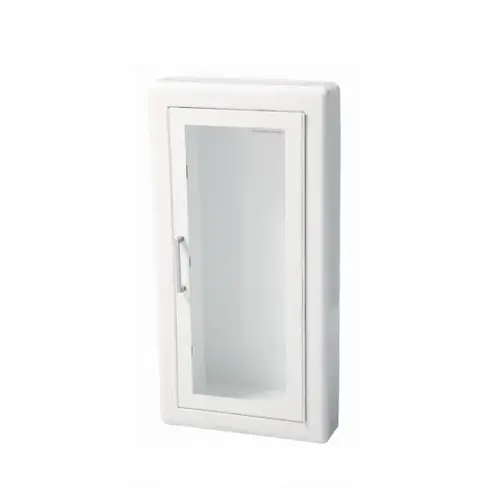

JL Industries 1013F10 Ambassador Steel Surface Mounted Non Fire-Rated Extinguisher Cabinet - Full Glass with Pull
Item #: 1013F10 by JL Industries
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
ADA Approved
False
Product Type
Fire Extinguisher Cabinet
Mounting Type
Surface Mounted
Function
Fire Extinguisher Cabinet
Handle Type
Pull handle
ADA Compliant
YES
Door Style
Full Glass with Standard Pull
Handle Finish
Zinc Plated
Tub Finish
Powder Coated White
Tub Material
Cold Rolled Steel
Product Material
Steel
Trim Style
Square Edge
Function Family
Fire Extinguisher Cabinet
Features
Flush Cabinet Doors With a 5/8" Door Stop are Attached by a Continuous Hinge
Door Material
Cold Rolled Steel
Manufacturer Parent
Activar Construction Products
Tub Height
27-3/16 Inches
Tub Depth
6 Inches
Door Glazing
Clear Acrylic
Tub Width
13-11/16 Inches
Door Finish
Powder Coated
Sub-Series
1013F10
- JL's Most Popular Painted Steel Cabinet with 10 Door Styles For Recessed, Semi Recessed or Surface-Mounted Installation
- Door and Trim Construction: Cold rolled steel with white powder-coat finish standard. Flush cabinet doors with a 5/8" door stop are attached by a continuous hinge and equipped with zinc-plated handle and roller catch.
- Trim Style and Depth: Trimless, Recessed - 3/8" flat trim or trimless.Semi-Recessed - 1 1/4", 1 1/2" Square Edge or 2 1/2", 3", 4"(Recessed Pull), 4 1/2" Rolled Edge. Surface-mount has a square edge or optional rolled edge upon request. 1 3/4" face trim on frame and 1 1/4" trim on door.
- Tub: Cold rolled steel with white powder-coat finish standard.
