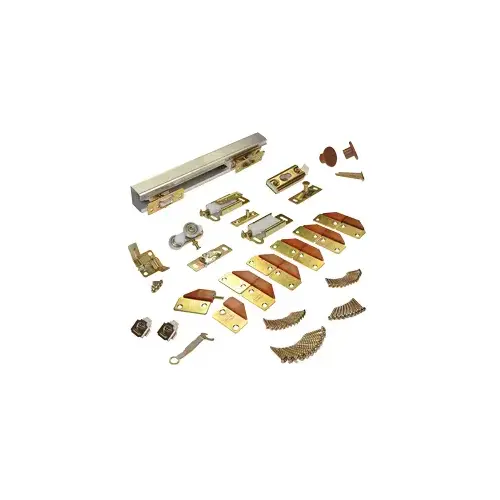

Johnson Hardware 100FD724 Panel Hardware Set, 72 in L Track, Top Mounting, For: 75 lb Bi-Fold Door
Item #: 100FD724 by L.E. Johnson Products, Inc
UPC #: 086073107242
In Stock $104.21 /each
Buying in bulk
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Bi-folding door hardware sets for standard panel or opening widths
- Track can be cut down to accommodate narrower panel or openings
- Nylon encapsulated sealed ball bearing wheel
- 12 to 14 ga steel components with zinc trivalent plated
- 6063T6 extruded aluminum I-Beam track with mill-aluminum finish
Returnable
Yes
Hardware Included
Yes
Defective Code
C
Commercial or Residential
Commercial and Residential
Track Length
72"
Sub Brand
100FD
Maximum Weight Per Door
75 lb.
Wheel Diameter
1"
Application
For commercial and residential applications
Number of Panel
4 panels
Packaging Type
Boxed
Steel Components
12-14 Gauge
Mounting
Top
Product Type
Bi-fold Hardware Kit
Material
Aluminum
Panel Thickness
1-1/8 to 1-3/4"
Maximum panel width
18"
Each Weight
5.800 LB
Velocity
N
Hazardous Material
No
Mounting Type
Top
Type
Commercial-Grade
Door Thickness
1-1/8 to 1-3/4"
Nomenclature
100FD724 BI-FOLD DR HDWR 72IN
Specifications:
Suitable for: 75 lb Bi-Fold Door
Includes: (1)100 Track (2) 1155 Track Stop (2) 107 PIV-Set (2) 1011 PIV Socket (2) 1706 Bot PIV (6) 1606 Hinges (2) 33 Knob (2) 1125 Hanger (1) 1712 Wrench and (1) 1808 Aligner
For door panels 1-1/8 to 1-3/4 in thick,18 in x 108 in W, weighing up to 75 pounds per panel. Designed to carry heavy solid core doors. Patented in tricycle in hangers with large ball bearing wheels, ride smoothly and quietly on convex shaped rails with precision single point contact. A quick disconnect clip system facilitating easy mounting or dismounting of door panels. 14 to 16 ga zinc trivalent plated steel parts. Set contains (1) 100 track length, (2) 107 top pivot set, (1) 1125 door hangers, (1) 1155 track stop, (3) 1606 hinges, (1) 1706 bottom pivot, (2) 1011 pivot bracket, (1) 1808 door aligner, (2) 33 door knob and (1) 1712 adjustment wrench.
