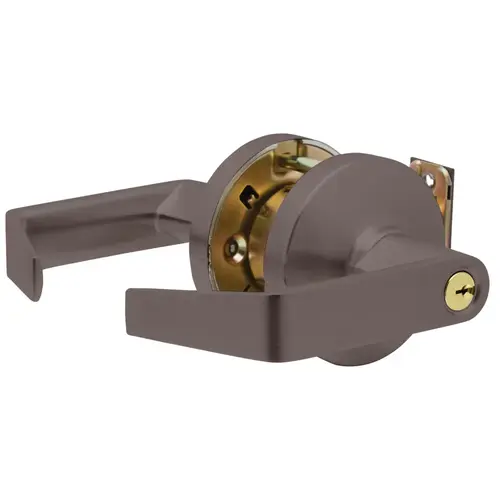

Falcon K Series Classroom Dane Lock C Keyway with 30302 Latch 30148 Strike Oil Rubbed Bronze Finish

Item #: K561PDD613 by Falcon

Brand: Falcon

Item Discontinued!
See reviews
See reviews summary

The item is currently out of stock and it may or may not be restocked
OUT OF STOCK

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
  • Clutching Lever Designs
  • Clutching lever design allows the lever to move when locked without unlatching the door, preventing damage to the chassis
  • Four screws through-bolted for added strength, providing high security and peace of mind
  • UL10C 3 Hour A Label
  • Lever Security Caps to Help Prevent Undesired Lever Removal and Lever Sag After Continual Use
  • Non Handed Levers for Easy Field Installation
  • Conventional cylinders or interchangeable core keying compatible with SFIC products from Falcon or other manufacturers.
  • Limited 10 Year Warranty

Finish

613 - Satin Bronze Oil-Rubbed

Function

Classroom

Series

K Series

Design

Dane

Backset

30-302 - Deadlatch - 2-3/4" Backset - Square corner, 2-1/4" x 1-1/8" - Standard

Strike

30-150 - Radius Corner, Full Lip Strike 1-5/8" x 2-1/4" with 1" Lip Length

Color

Oil-Rubbed Bronze

Color Code

613/US10B

Fire Rated

3 Hours {A}

Origin

China

Package Height

6.875

Package Length

9.25

Package Volume

238.4765625

Package Width

3.75

Standard Latch

1-1/8" x 2-1/4", Square corner faceplate, 1" housing diameter, 1/2" Throw, 2-3/4" backset

Standard Cylinder

P - 6-Pin, keyed 5-pin, Falcon G keyway, Keyed different (KD)

Duty Level

Heavy Duty

Lock Type

Cylindrical

Door Thickness Range

1-3/8" to 2-1/4"

Substrate Type

Brass or Steel, Zinc plated and dichromated for rust resistance. Springs are Stainless Steel.

Standard Strike

1-1/4" x 4-7/8", ANSI, Square curved lip corner, no box

Lever Style

Dane - D

Door Handing

Non-Handed

UL Listing Type

UL Listed (3 Hour A Label)

Electronic

No

Cylinder

P - 6-Pin/Keyed 5 Conventional Cylinder

Keyed

Yes

ANSI/BHMA Standards

F84-1

Grade

Grade 1

Product Overview

Falcon K561 - Classroom Lock - Grade 1 Single Cylinder Cylindrical Lock

The K Series offers the most common functions, lever styles and finishes at an affordable price. The certified ANSI/BHMA Grade 1 K Series also features conventional cylinders and small format interchangeable cores (SFIC) that are compatible with SFIC products from other manufacturers.

It is built to withstand high-traffic areas and high-abuse conditions. The conventional cylinders are available in all Falcon conventional key sections, as well as Schlage C keyway, which is now master-keyed across the complete Falcon product line.

FEATURES & BENEFITS

Security

  • 4 screws through-bolted for added strength
  • Clutching lever design allows the lever to move when locked without unlatching the door, preventing damage to the chassis
  • Certified Grade 1 and UL10C 3 hour A label

Compatibility

  • Conventional cylinders or interchangeable core (IC) keying is compatible with SFIC products from Falcon and other manufacturers.
  • Offered in 3 lever options and 2 finish options
  • Large function variety for various applications

Convenience

  • Non-handed levers for easy field installation
  • Lever security caps to help prevent undesired lever removal and lever sag after continual use
  • 10-year warranty

CERTIFICATIONS

For more specifications and certifications,visit the K Series catalog.

  • ANSI/BHMA: Certified ANSI/BHMA A156.2, Series 4000, Grade 1
  • UL: UL10C 3 hour A label

DESIGNS & FINISHES

View the catalog for the full design and finish offering.

  • Available in Oil Rubbed Bronze (613) and Satin Chrome (626)
  • Lever options include Avalon, Dane and Quantum
  • Levers are pressure-cast (solid levers, no inserts) material finished to match mating parts
  • Roses are heavy-wrought brass or bronze, installed over pressure-cast rose inserts, which are through-bolted through the door
