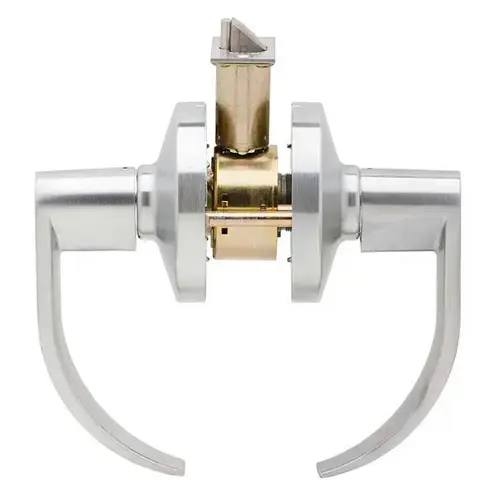

Falcon K101S Q 626 K Series Passage Quantum Lock with 30266 Latch 30148 Strike Satin Chrome Finish
Item #: K101S Q 626 by Falcon
UPC #: 043156513376
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Clutching Lever Designs
- Clutching lever design allows the lever to move when locked without unlatching the door, preventing damage to the chassis
- UL10C 3 Hour A Label
- Non Handed Levers for Easy Field Installation
- Four screws through-bolted for added strength, providing high security and peace of mind
- Lever Security Caps to Help Prevent Undesired Lever Removal and Lever Sag After Continual Use
- Conventional cylinders or interchangeable core keying compatible with SFIC products from Falcon or other manufacturers.
- Limited 10 Year Warranty
Finish
Satin Chrome
Function
Passage
Series
K Series
Design
Quantum
Backset
2-3/4" Backset
Strike
ASA Strike
Color Code
626/US26D
Grade
ANSI/BHMA Grade 1
Application
High Traffic; High Abuse Door Openings Demand
Warranty
10 Year
Handle Type
Lever
Rose Diameter
3-1/2 Inch
Finish Description
Satin Chrome
ANSI Function
F75
Latch Number
30-266
Strike Number
30-148
Strike Type
ANSI Curved Lip
ADA Compliant
YES
Finish Family
Satin Chrome
Lever Style
QUA-Quantum
Strike Size
4-7/8" x 1-1/4"
Rose/Escutcheon Trim
Round Rose
Door Cross Bore
2.125 Inch
Standards
ANSI/BHMA A156.2; UL Listed
Function Description
Latch retracted by knobs/levers at all times
Front Size
1-1/8" x 2-1/4"
Function Family
Passage/Hall/Closet
Strike Lip
1-5/16 Inch
Product Projection
3-1/8 Inch
Trim Material
Solid Pressure Cast Zinc (Lever)
Features
Four Screws Through-Bolted for Added Strength Providing High Security and Peace of Mind; PressureReleaseTM Outside Lever Disengages when Locked to Protect Internal Mechanisms
Product Type
Cylindrical Lock
Manufacturer Parent
Allegion
Lever Length-Inches
5 Inch
Latch Corner
Square
Knob/Lever Size
5 Inch
Lever Style Family
Curved Return Lever
Sub-Series
K101S-QUA-626
Product Overview
Passage Latchset, Quantum Lever, Satin Chrome
High traffic, high abuse door openings demand a Grade 1 quality lock to keep doors secure. When quality and reliability are needed but cost is a concern, the certified ANSI/BHMA Grade 1 Falcon K Series can do the job. The Falcon K Series gets back to basics by offering the most common functions, lever styles and finishes at an affordable price. The K Series features conventional cylinders and small format interchangeable cores that are compatible with SFIC products from other manufacturers. Our conventional cylinders are available in all Falcon conventional key sections, as well as Schlage C keyway, which is now masterkeyed across the complete Falcon product line.
Conventional cylinders and small format interchangeable cores that are compatible with SFIC products from other manufacturers.
